Infineon TZ240N36KOF

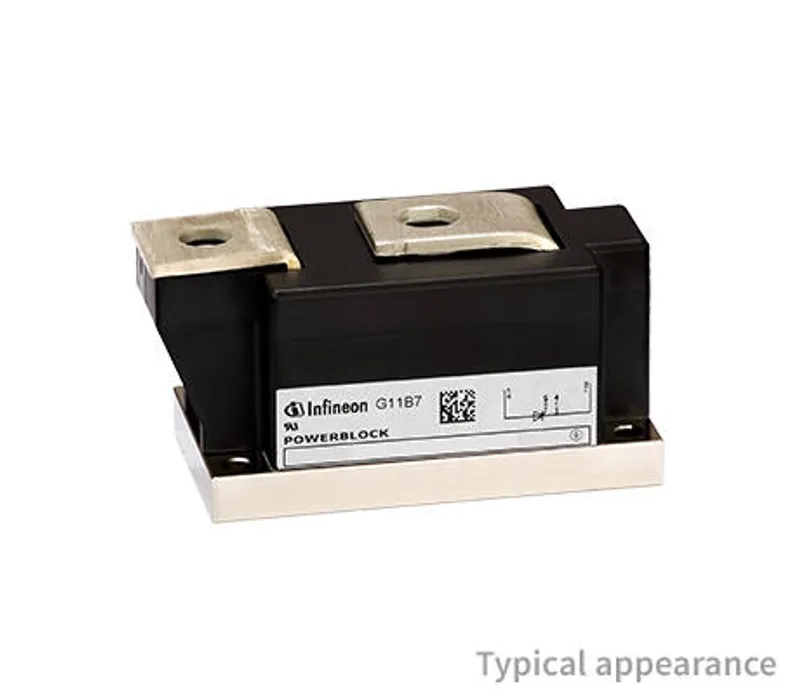

50 mm Single Thyristor Module with 3600 V in pressure contact technology

MPN: TZ240N36KOF
Category: Thyristor & Diode Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon TZ240N36KOF?

Infineon TZ240N36KOF: 50 mm Single Thyristor Module with 3600 V in pressure contact technology. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

(diT/dt)cr [A/µs] (@DIN IEC 747- 6)	100
Configuration	Single SCR Phase Control
Housing	50 mm
IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)	240/85
IFSM / ITSM [A] (@10ms, Tvj max)	5500
Product Line	Power Block
rT [mΩ] (@Tvj max)	1.7
RthJC [K/W] (@180° el sin)	0.078
Tvj [°C]	125
VDRM / VRRM [V]	3600
VT0 [V] (@Tvj max)	1.17
∫I2dt [A²s · 103] (@10ms, Tvj max)	151

Ordering codes (OPN)

TZ240N36KOFHPSA1

active and preferred, package BG-PB501-1, RoHS
