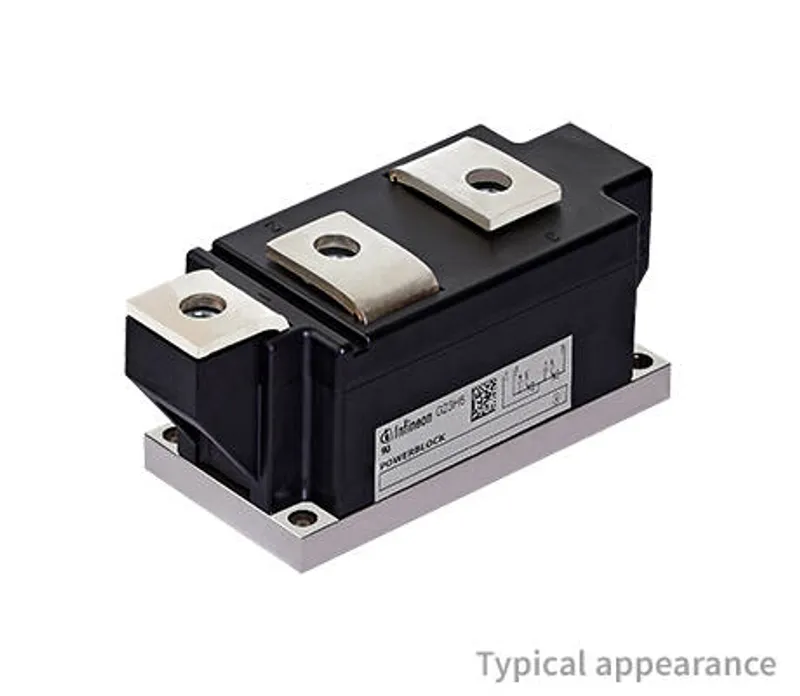

Infineon TD520N22KOFB01A – 60 mm Thyristor/Diode Module with 2200 V in pressure contact technology

Name: Infineon TD520N22KOFB01A – 60 mm Thyristor/Diode Module with 2200 V in pressure contact technology
Brand: Infineon
SKU: TD520N22KOFB01A

MPN: TD520N22KOFB01A · Brand: Infineon

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Thyristor & Diode Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can TD520N22KOFB01A be shipped?

TD520N22KOFB01A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TD520N22KOFB01A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TD520N22KOFB01A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TD520N22KOFB01A, subject to availability and destination.

Infineon TD520N22KOFB01A: 60 mm Thyristor/Diode Module with 2200 V in pressure contact technology. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	SCR / Diode Phase Control
Housing	60 mm
IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)	520/85
ITSM	14500 A
Product Line	Power Block
rT [mΩ] (@Tvj max)	0.35
RthJC [K/W] (@180° el sin)	0.058
Tvj [°C]	125
VDRM/ VRRM (V)	2200 V
VT0 [V] (@Tvj max)	0.85
∫I2dt [A²s · 103] (@10ms, Tvj max)	1051
