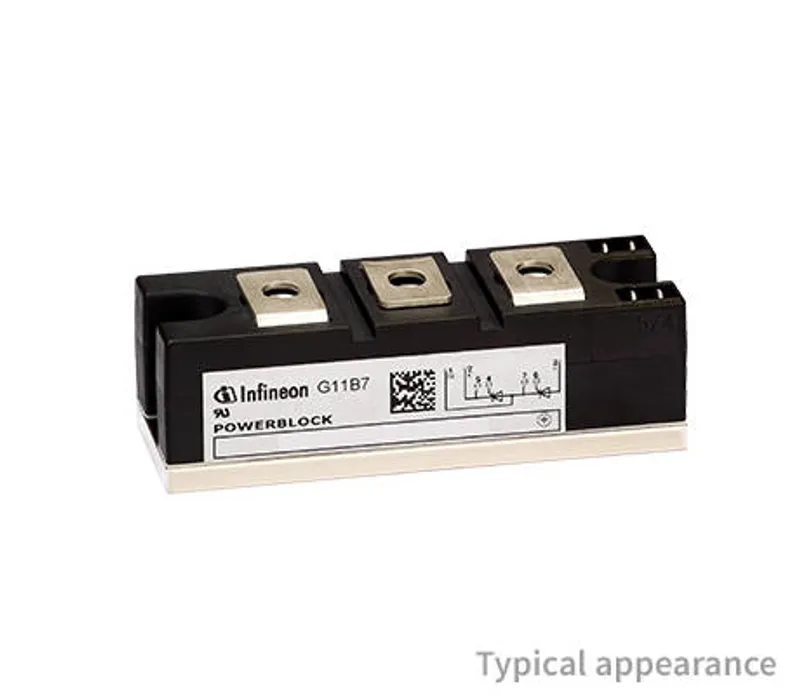

Infineon TD162N16KOF – 34 mm Thyristor/Diode Module with 1600 V in pressure contact technology
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can TD162N16KOF be shipped?
TD162N16KOF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TD162N16KOF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TD162N16KOF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TD162N16KOF, subject to availability and destination.
Infineon TD162N16KOF: 34 mm Thyristor/Diode Module with 1600 V in pressure contact technology. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| (diT/dt)cr [A/µs] (@DIN IEC 747- 6) | 150 |
| Configuration | SCR / Diode Phase Control |
| Housing | 34 mm |
| IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin) | 162/85 |
| IFSM / ITSM [A] (@10ms, Tvj max) | 4400 |
| Product Line | Power Block |
| rT [mΩ] (@Tvj max) | 0.95 |
| RthJC [K/W] (@180° el sin) | 0.2 |
| Tvj [°C] | 125 |
| VDRM / VRRM [V] | 1600 |
| VT0 [V] (@Tvj max) | 0.85 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 97 |
Ordering codes (OPN)
| TD162N16KOFHPSA1 | discontinued, package BG-PB34-1, RoHS |
| TD162N16KOFHPSA2 | active and preferred, package BG-PB34AT-1, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet TD162N16KOF |
