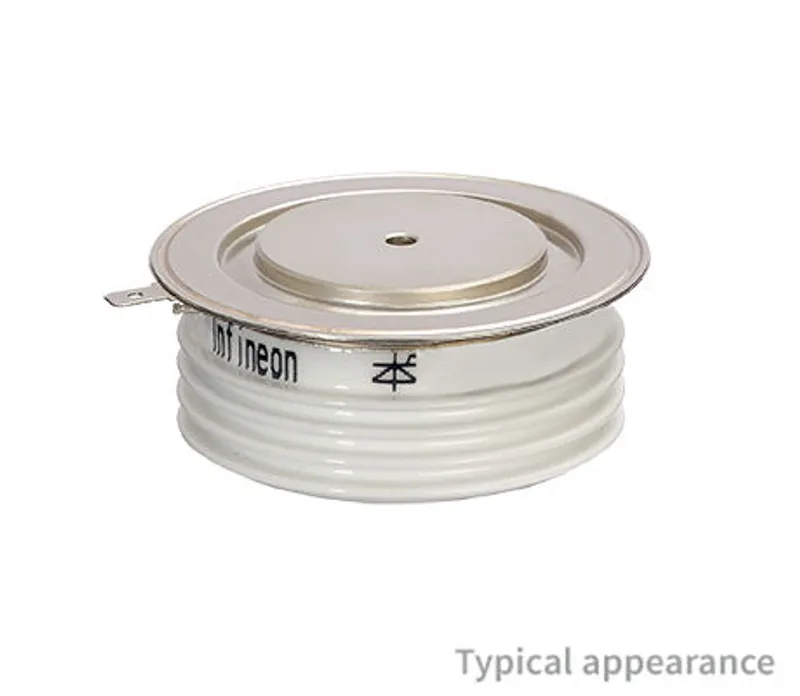

Infineon T880N16TOF

Thyristor & Diode Module

MPN: T880N16TOF
Category: Thyristor & Diode Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon T880N16TOF?

Infineon T880N16TOF: Infineon T880N16TOF in Disc dia 58mm height 26mm / Ceramic housing. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Clamping force [kn] range	10.5 to 21
Configuration	Electrical Triggered Phase Control Thyristor
Housing	Disc dia 58mm height 26mm / Ceramic
ITAVM/TC [A/°C] (@180° el sin)	879/85
ITAVM	879 (180 ° el sin)
ITSM [A] (@10ms, Tvj max)	15500
ITSM	15500 A
rT [mΩ] (@Tvj max) max	0.27
RthJC [K/kW] (@180° el sin) max	32
tq [µs]	250
Tvj [°C] max	125
VDRM / VRRM [V]	1600
VDRM/ VRRM (V)	1600 V
VT/IT [V/kA] (@Tvj max)	1.95/3.6
VT0 [V] (@Tvj max) max	0.85
∫I2dt [A²s · 103] (@10ms, Tvj max)	1200

Ordering codes (OPN)

T880N16TOFXPSA1

active and preferred, package BG-T5726K-1, RoHS

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet T880N16TOFPDF
