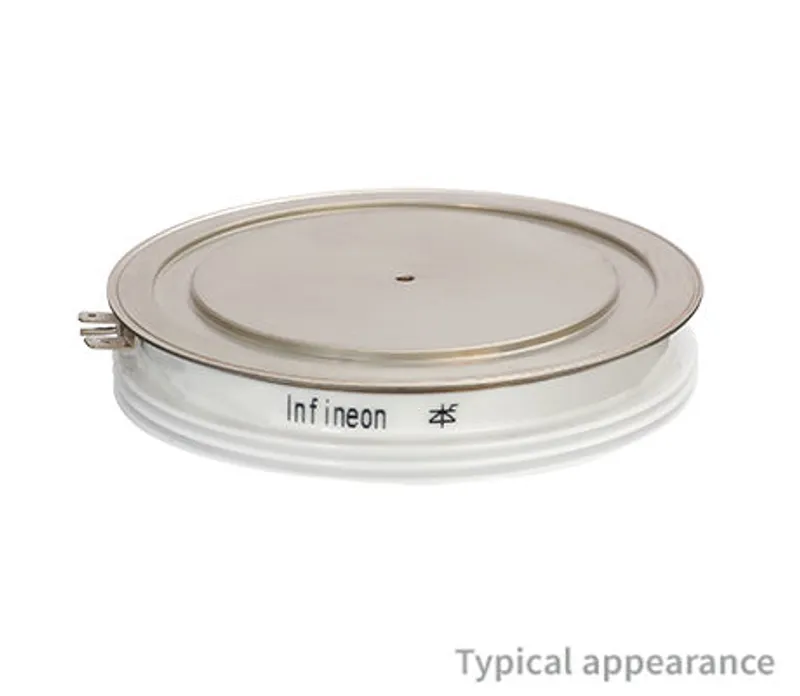

Infineon T1851N70TOH
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can T1851N70TOH be shipped?
T1851N70TOH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up T1851N70TOH in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for T1851N70TOH and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for T1851N70TOH, subject to availability and destination.
Infineon T1851N70TOH: Infineon T1851N70TOH in Disc dia 120mm height 26mm / Ceramic housing. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Clamping force [kn] range | 45 to 65 |
| Configuration | Electrical Triggered Phase Control Thyristor |
| Housing | Disc dia 120mm height 26mm / Ceramic |
| ITAVM/TC [A/°C] (@180° el sin) | 1830/85 |
| ITAVM | 1830 (180 ° el sin) |
| ITSM [A] (@10ms, Tvj max) | 48000 |
| ITSM | 48000 A |
| rT [mΩ] (@Tvj max) max | 0.49 |
| RthJC [K/kW] (@180° el sin) max | 6.5 |
| tq [µs] | 600 |
| Tvj [°C] max | 125 |
| VDRM / VRRM [V] | 7000 |
| VDRM/ VRRM (V) | 7000 V |
| VT/IT [V/kA] (@Tvj max) | 2.65/3.0 |
| VT0 [V] (@Tvj max) max | 1.22 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 11500 |
Ordering codes (OPN)
| T1851N70TOHXPSA1 | active and preferred, package BG-T12026K-1, RoHS |
