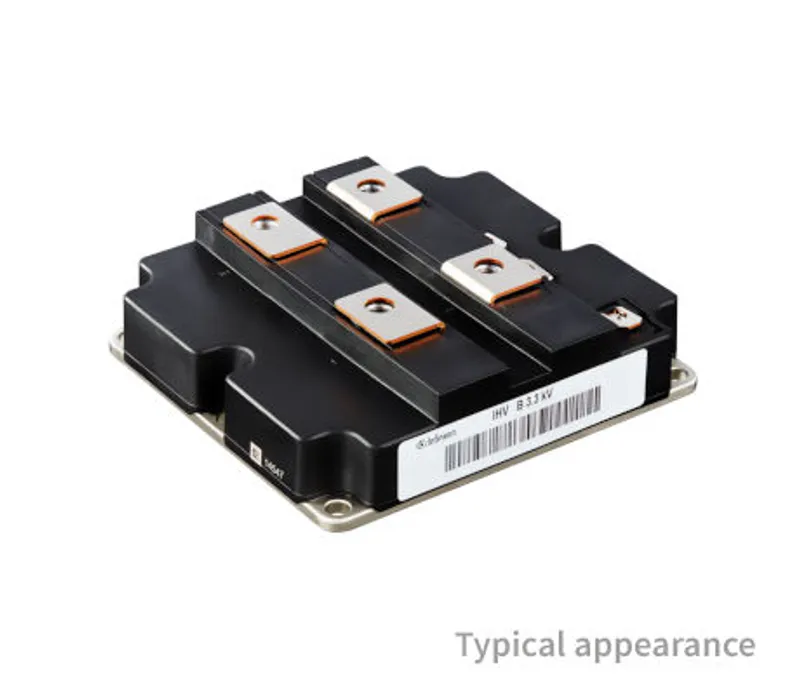

Infineon FZ825R33HE4D – 3300 V, 825 A single switch IGBT module

Name: Infineon FZ825R33HE4D – 3300 V, 825 A single switch IGBT module
Brand: Infineon
SKU: FZ825R33HE4D

MPN: FZ825R33HE4D · Brand: Infineon

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IGBT Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can FZ825R33HE4D be shipped?

FZ825R33HE4D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FZ825R33HE4D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FZ825R33HE4D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FZ825R33HE4D, subject to availability and destination.

Infineon FZ825R33HE4D: 3300 V, 825 A single switch IGBT module in IHM B housing (IGBT4 - E4). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	Single switch
Dimensions (width)	130 mm
Dimensions (length)	140 mm
Features	Enlarged Diode
Features	200% PC
Housing	IHM B
IC(nom) / IF(nom)	825 A
IC max	825 A
Qualification	Industrial
Qualification	Traction
Technology	IGBT4 - E4
VCE(sat) (Tvj=25°C typ)	2.4 V
VCES / VRRM	3300 V
VF (Tvj=25°C typ)	2.55 V
Voltage Class max	3300 V
