Infineon FZ3600R12HP4

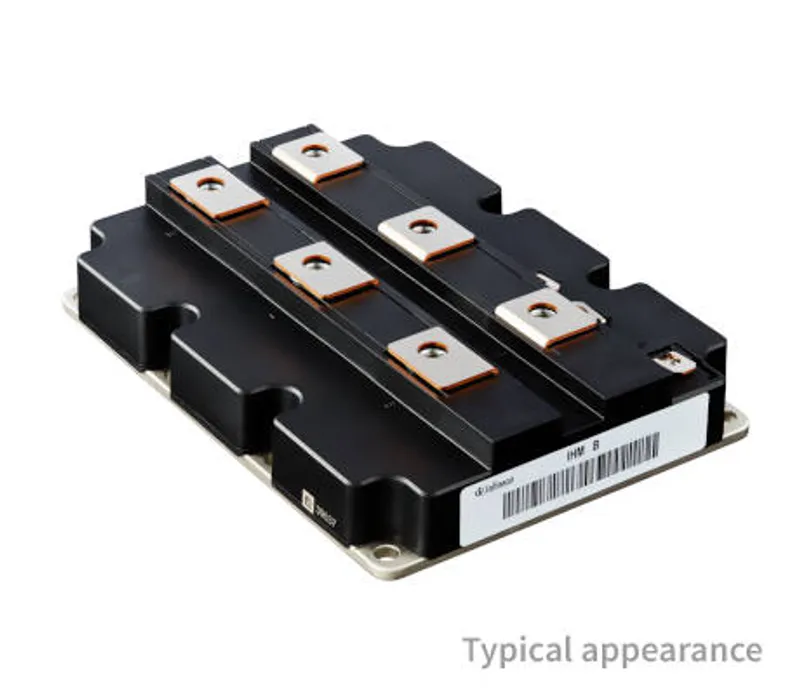

1200 V, 3600 A single switch IGBT module

MPN: FZ3600R12HP4
Category: IGBT Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon FZ3600R12HP4?

Infineon FZ3600R12HP4: 1200 V, 3600 A single switch IGBT module in IHM B housing (IGBT4 - P4). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	Single switch
Dimensions (width)	140 mm
Dimensions (length)	190 mm
Housing	IHM B
IC(nom) / IF(nom)	3600 A
IC max	3600 A
Qualification	Industrial
Technology	IGBT4 - P4
VCE(sat) (Tvj=25°C typ)	1.7 V
VF (Tvj=25°C typ)	1.8 V
Voltage Class max	1200 V

Ordering codes (OPN)

FZ3600R12HP4HOSA2

active, package AG-IHMB190, RoHS

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet FZ3600R12HP4PDF

FZ3600R12HP4: frequently asked questions

When can FZ3600R12HP4 be shipped?

FZ3600R12HP4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FZ3600R12HP4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FZ3600R12HP4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FZ3600R12HP4, subject to availability and destination.
