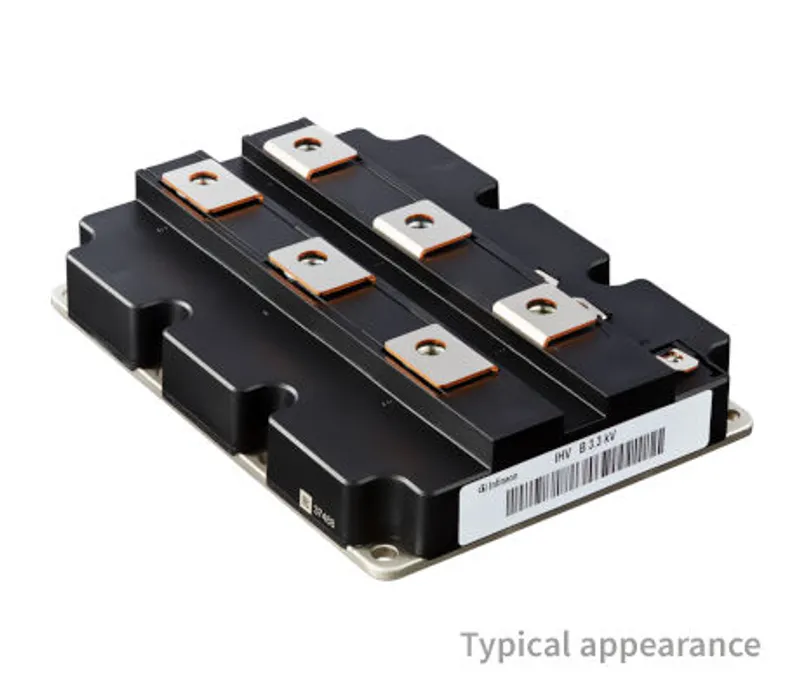

Infineon FZ1200R33HE4D-B9 – 3300 V, 1200 A single switch IGBT module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IGBT Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can FZ1200R33HE4D-B9 be shipped?
FZ1200R33HE4D-B9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FZ1200R33HE4D-B9 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FZ1200R33HE4D-B9 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FZ1200R33HE4D-B9, subject to availability and destination.
Infineon FZ1200R33HE4D-B9: 3300 V, 1200 A single switch IGBT module in IHV B housing (IGBT4 - E4). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Configuration | Single switch |
| Dimensions (width) | 140 mm |
| Dimensions (length) | 190 mm |
| Features | Optimized IGBT Diode Ratio |
| Housing | IHV B |
| IC(nom) / IF(nom) | 1200 A |
| IC max | 1200 A |
| Qualification | Industrial |
| Qualification | Traction |
| Technology | IGBT4 - E4 |
| VCE(sat) (Tvj=25°C typ) | 2.4 V |
| VCES / VRRM | 3300 V |
| VF (Tvj=25°C typ) | 2.6 V |
| Voltage Class max | 3300 V |
Ordering codes (OPN)
| FZ1200R33HE4DB9BPSA1 | active and preferred, package AG-IHVB190, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet FZ1200R33HE4D-B9 |
