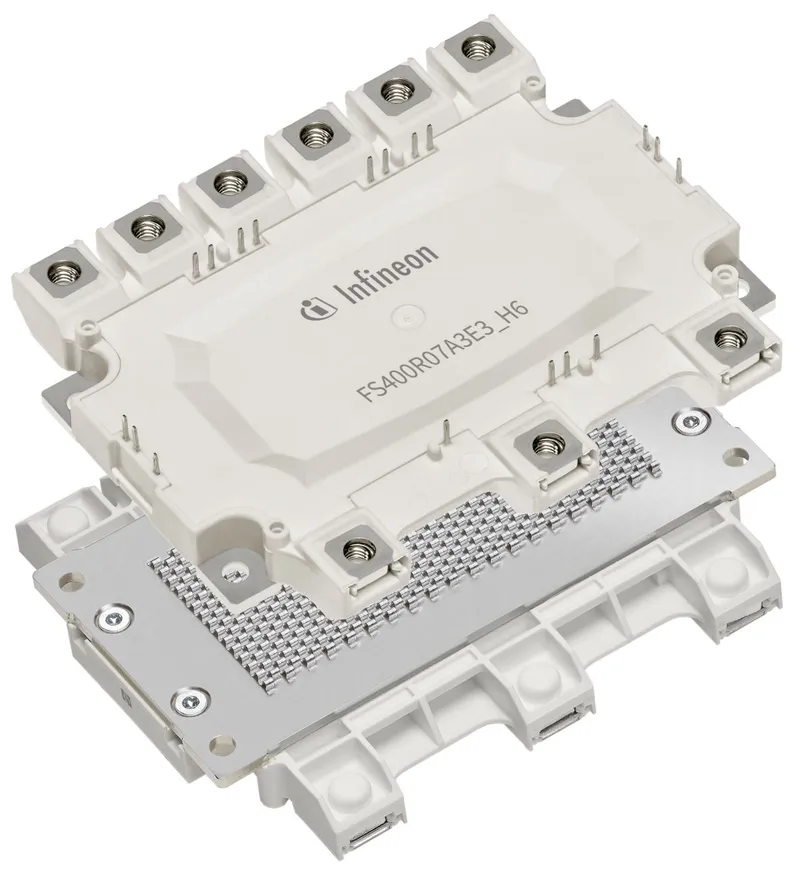

Infineon FS400R07A3E3-H6 – 705V, 400 A sixpack automotive qualified IGBT module
Discontinued by Infineon — we can still source the original FS400R07A3E3-H6 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IGBT Modules |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the FS400R07A3E3-H6 now that it is discontinued?
Yes. Infineon has discontinued the FS400R07A3E3-H6, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can FS400R07A3E3-H6 be shipped?
FS400R07A3E3-H6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FS400R07A3E3-H6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FS400R07A3E3-H6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FS400R07A3E3-H6, subject to availability and destination.
Infineon FS400R07A3E3-H6: 705V, 400 A sixpack automotive qualified IGBT module in HybridPACK™ DC6 housing (IGBT3 - E3). Discontinued by Infineon. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Applications | Aircon |
| Applications | CAV |
| Applications | eMobility |
| Applications | Hybrid Electric Vehicles |
| Applications | Drives |
| Configuration | Sixpack |
| Cooling Concept | Wave baseplate |
| Dimensions (width) | 98 mm |
| Dimensions (length) | 128 mm |
| Features | Wave baseplate |
| Housing | HybridPACK™ DC6 |
| IC(nom) / IF(nom) | 400 A |
| IC max | 400 A |
| Qualification | Automotive |
| Technology | IGBT3 - E3 |
| VCE(sat) (Tvj=25°C typ) | 1.45 V |
| VCES (Tvj=25°C typ) | 705 V |
| VF (Tvj=25°C typ) | 1.55 V |
| Voltage Class max | 705 V |
Ordering codes (OPN)
| FS400R07A3E3H6BPSA1 | discontinued, package AG-HP1-311, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet FS400R07A3E3-H6 |
