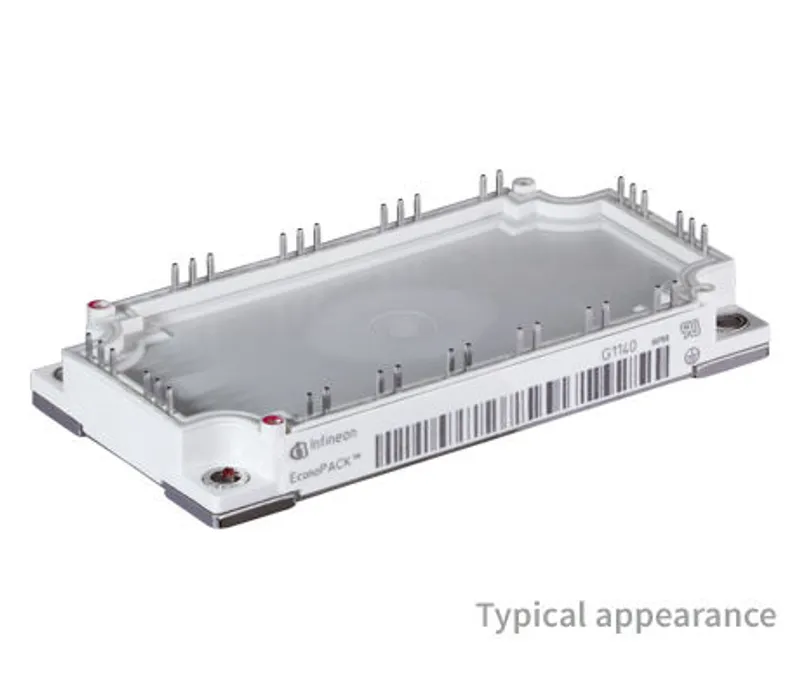

Infineon FS100R12KT4G-B11 – 1200 V, 100 A sixpack IGBT module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IGBT Modules |
| Lifecycle | Not for new design |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can FS100R12KT4G-B11 be shipped?
FS100R12KT4G-B11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FS100R12KT4G-B11 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FS100R12KT4G-B11 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FS100R12KT4G-B11, subject to availability and destination.
Infineon FS100R12KT4G-B11: 1200 V, 100 A sixpack IGBT module in EconoPACK™ 3 housing (IGBT4 - T4). Infineon status: not for new design — still supplied, but not recommended for new designs. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Configuration | Sixpack |
| Dimensions (length) | 122 mm |
| Dimensions (width) | 62 mm |
| Features | PressFIT |
| Housing | EconoPACK™ 3 |
| IC(nom) / IF(nom) | 100 A |
| IC max | 100 A |
| Qualification | Industrial |
| Technology | IGBT4 - T4 |
| VCE(sat) (Tvj=25°C typ) | 1.75 V |
| VF (Tvj=25°C typ) | 1.7 V |
| Voltage Class max | 1200 V |
Ordering codes (OPN)
| FS100R12KT4GB11BOSA1 | not for new design, package AG-ECONO3B, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet FS100R12KT4G-B11 |
