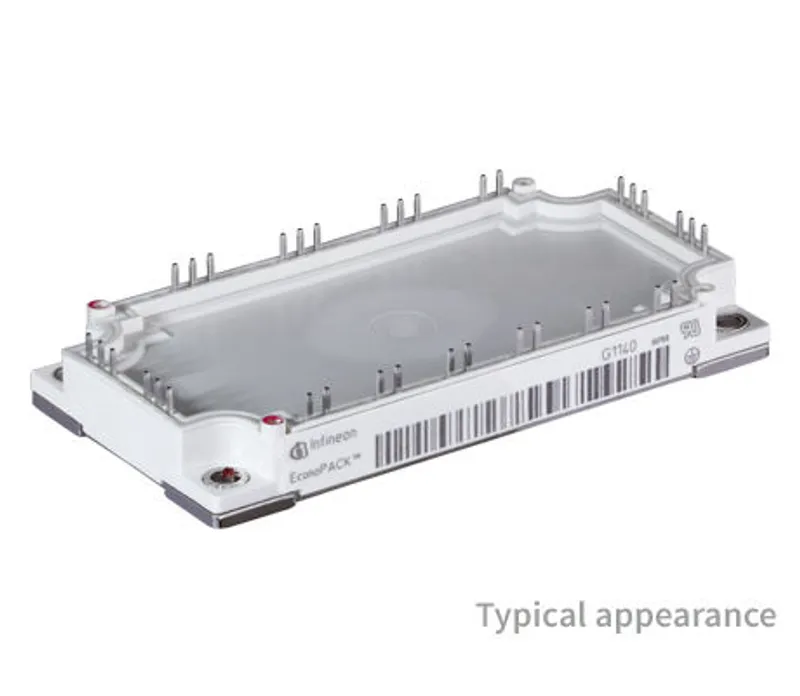

Infineon FP75R17N3E4-B20 – EconoPIM™ 3 1700 V, 75 A three phase PIM IGBT module with TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode and NTC. The PIM (Power Integrated Modules) with integration of 2200V rectifier and brake chopper enables system cost savings.

Name: Infineon FP75R17N3E4-B20 – EconoPIM™ 3 1700 V, 75 A three phase PIM IGBT module with TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode and NTC. The PIM (Power Integrated Modules) with integration of 2200V rectifier and brake chopper enables system cost savings.
Brand: Infineon
SKU: FP75R17N3E4-B20

MPN: FP75R17N3E4-B20 · Brand: Infineon

Price on request

Discontinued by Infineon — we can still source the original FP75R17N3E4-B20 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IGBT Modules
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the FP75R17N3E4-B20 now that it is discontinued?

Yes. Infineon has discontinued the FP75R17N3E4-B20, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FP75R17N3E4-B20 be shipped?

FP75R17N3E4-B20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FP75R17N3E4-B20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FP75R17N3E4-B20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FP75R17N3E4-B20, subject to availability and destination.

Infineon FP75R17N3E4-B20: EconoPIM™ 3 1700 V, 75 A three phase PIM IGBT module with TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode and NTC. The PIM (Power Integrated Modules) with integration of 2200V rectifier and brake chopper enables system cost savings. (IGBT4 - E4). Discontinued by Infineon. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	PIM
Dimensions (length)	122 mm
Dimensions (width)	62 mm
Housing	EconoPIM™ 3
IC(nom) / IF(nom)	75 A
IC max	75 A
Qualification	Industrial
Technology	IGBT4 - E4
VCE(sat) (Tvj=25°C typ)	1.95 V
VCES / VRRM	1700 V
Voltage Class max	1700 V
