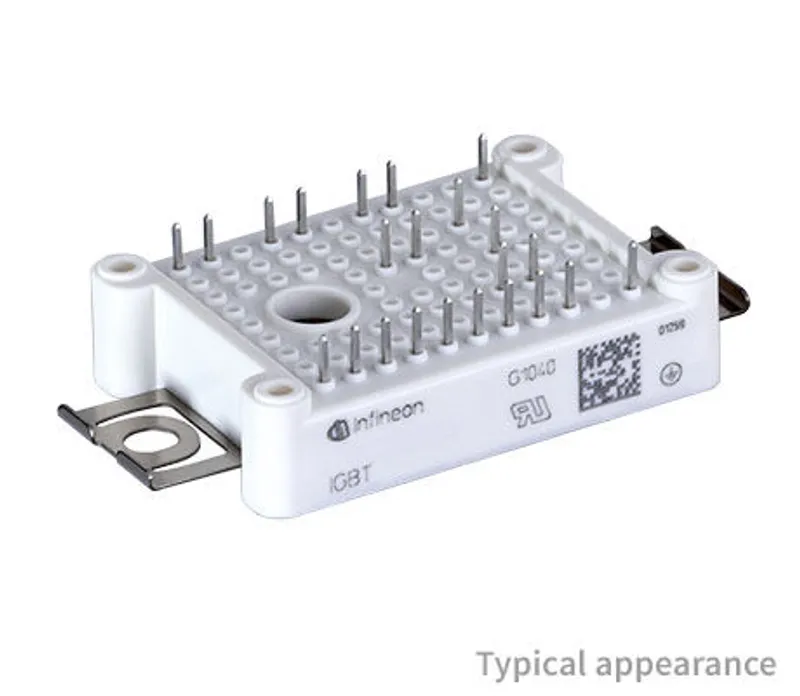

Infineon FP20R06W1E3 – 600 V, 20 A PIM IGBT module

Name: Infineon FP20R06W1E3 – 600 V, 20 A PIM IGBT module
Brand: Infineon
SKU: FP20R06W1E3

MPN: FP20R06W1E3 · Brand: Infineon

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IGBT Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can FP20R06W1E3 be shipped?

FP20R06W1E3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FP20R06W1E3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FP20R06W1E3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FP20R06W1E3, subject to availability and destination.

Infineon FP20R06W1E3: 600 V, 20 A PIM IGBT module in EasyPIM™ 1B housing (IGBT3 - E3). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	PIM
Dimensions (length)	48 mm
Dimensions (width)	33.8 mm
Housing	EasyPIM™ 1B
IC(nom) / IF(nom)	20 A
IC max	20 A
Qualification	Industrial
Technology	IGBT3 - E3
VCE(sat) (Tvj=25°C typ)	1.55 V
VCES / VRRM	600 V
VF (Tvj=25°C typ)	1.6 V
Voltage Class max	600 V
