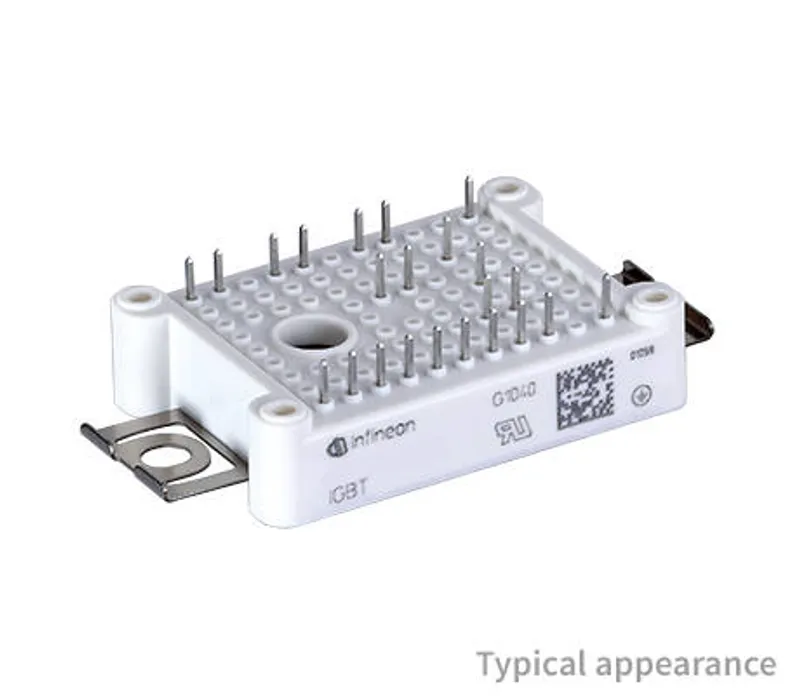

Infineon FP15R12W1T4Q – EasyPIM™ 1200 V, 15 A TRENCHSTOP/FIELDSTOP IGBT4, emitter-controlled 4 diode and TIM 2.0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IGBT Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can FP15R12W1T4Q be shipped?
FP15R12W1T4Q is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FP15R12W1T4Q in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FP15R12W1T4Q and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FP15R12W1T4Q, subject to availability and destination.
Infineon FP15R12W1T4Q: EasyPIM™ 1200 V, 15 A TRENCHSTOP/FIELDSTOP IGBT4, emitter-controlled 4 diode and TIM 2.0 (IGBT4 - T4). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Configuration | 2-level |
| Dimensions (width) | 33.8 mm |
| Dimensions (length) | 62.8 mm |
| Features | Solder Pin |
| Housing | EasyPIM™ |
| IC max | 15 A |
| Qualification | Industrial |
| Technology | IGBT4 - T4 |
| VCE(sat) (Tvj=25°C typ) | 1.85 V |
| VCES / VRRM | 1200 V |
| VF (Tvj=25°C typ) | 2 V |
| Voltage Class max | 1200 V |
Ordering codes (OPN)
| FP15R12W1T4QBPSA1 | active and preferred, package AG-EASY1B, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet FP15R12W1T4Q |
More Infineon parts

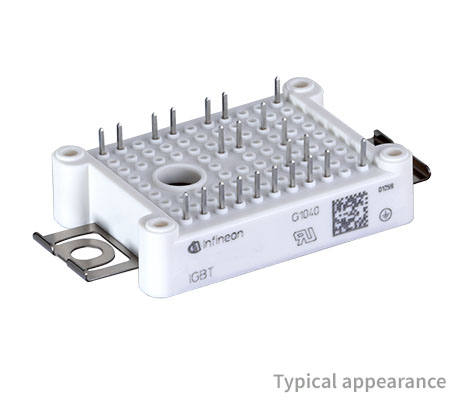

Available on request1200 V, 15 A PIM IGBT module
