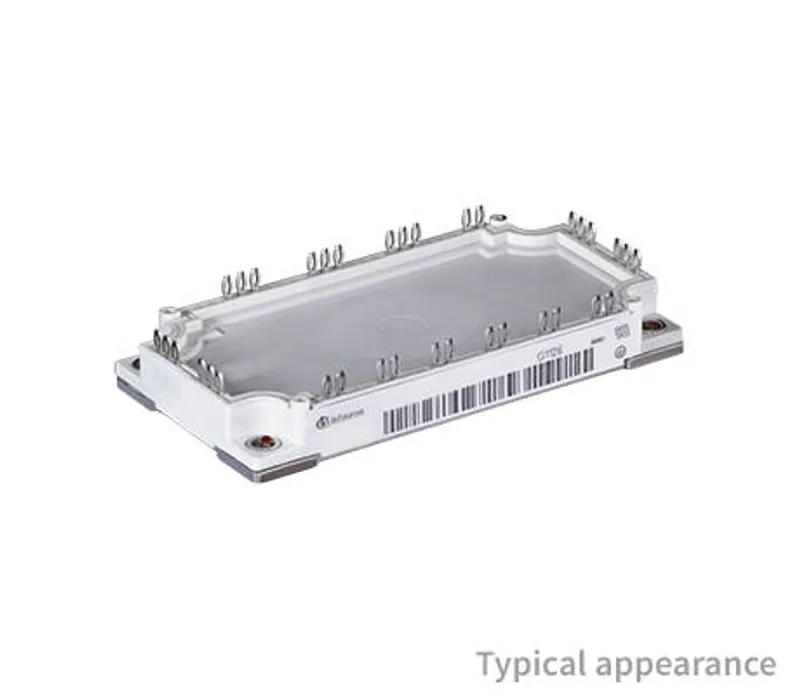

Infineon FP100R12KT4-B11

1200 V, 100 A PIM three phase input rectifier IGBT module

MPN: FP100R12KT4-B11
Category: IGBT Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon FP100R12KT4-B11?

Infineon FP100R12KT4-B11: 1200 V, 100 A PIM three phase input rectifier IGBT module in EconoPIM™ 3 housing (IGBT4 - T4). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	PIM
Dimensions (length)	122 mm
Dimensions (width)	62 mm
Features	PressFIT
Housing	EconoPIM™ 3
IC(nom) / IF(nom)	100 A
IC max	100 A
Qualification	Industrial
Technology	IGBT4 - T4
VCE(sat) (Tvj=25°C typ)	1.75 V
VF (Tvj=25°C typ)	1.7 V
Voltage Class max	1200 V

Ordering codes (OPN)

FP100R12KT4B11BOSA1

active and preferred, package AG-ECONO3B, RoHS

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet FP100R12KT4-B11PDF

FP100R12KT4-B11: frequently asked questions

When can FP100R12KT4-B11 be shipped?

FP100R12KT4-B11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FP100R12KT4-B11 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FP100R12KT4-B11 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FP100R12KT4-B11, subject to availability and destination.
