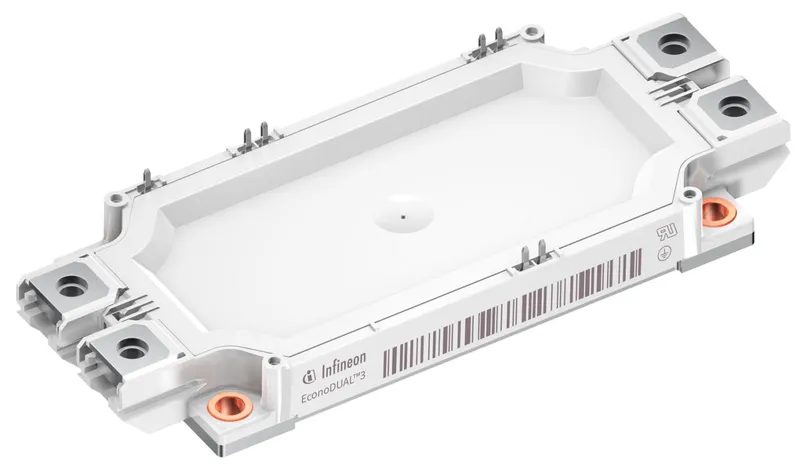

Infineon FF600R12ME7 – 1200 V, 600 A dual IGBT module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IGBT Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can FF600R12ME7 be shipped?
FF600R12ME7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FF600R12ME7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FF600R12ME7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF600R12ME7, subject to availability and destination.
Infineon FF600R12ME7: 1200 V, 600 A dual IGBT module in EconoDUAL™ 3 housing (IGBT7 - E7). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Configuration | half-bridge |
| Dimensions (length) | 152 mm |
| Dimensions (width) | 62.5 mm |
| Features | Solder Pin |
| Housing | EconoDUAL™ 3 |
| IC(nom) / IF(nom) | 600 A |
| IC max | 600 A |
| Qualification | Industrial |
| Technology | IGBT7 - E7 |
| VCE(sat) (Tvj=25°C typ) | 1.5 V |
| VCES / VRRM | 1200 V |
| VF (Tvj=25°C typ) | 1.8 V |
| Voltage Class max | 1200 V |
Ordering codes (OPN)
| FF600R12ME7BPSA1 | active and preferred, package AG-ECONOD, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet FF600R12ME7 |
