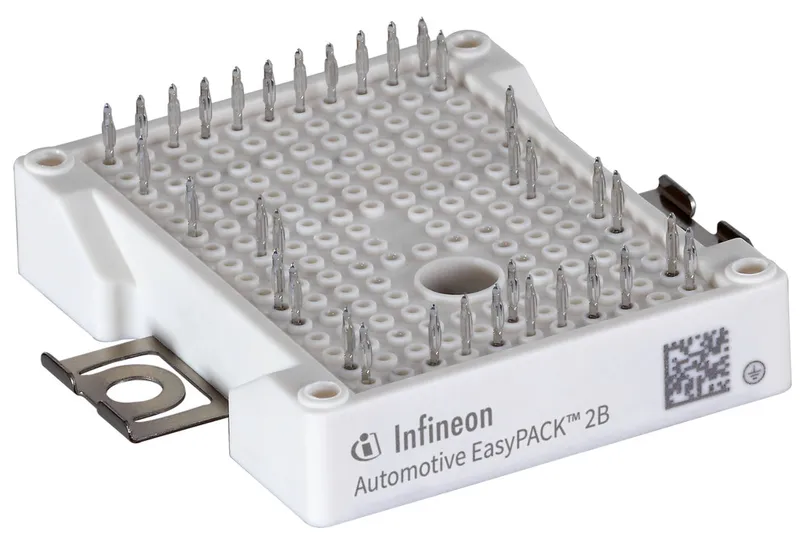

Infineon FF300R08W2P2-B11A – EasyPACK™ 2B 750V, 300A half bridge automotive qualified IGBT module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IGBT Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can FF300R08W2P2-B11A be shipped?
FF300R08W2P2-B11A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FF300R08W2P2-B11A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FF300R08W2P2-B11A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF300R08W2P2-B11A, subject to availability and destination.
Infineon FF300R08W2P2-B11A: EasyPACK™ 2B 750V, 300A half bridge automotive qualified IGBT module (IGBT EDT2). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Applications | Hybrid Electric Vehicles ; eMobility ; Main Inverter ; Motorcycle |
| Configuration | half-bridge |
| Cooling Concept | Indirect cooling |
| Dimensions (width) | 42.5 mm |
| Dimensions (length) | 51 mm |
| Features | PressFIT |
| Housing | EasyPACK™ 2B |
| IC(nom) / IF(nom) | 300 A |
| Launch year | 2021 |
| Planned to be available until at least | 2038 |
| Qualification | Automotive |
| Technology | IGBT EDT2 |
| VCE(sat) (Tvj=25°C typ) | 1 V |
| VCES (Tvj=25°C typ) | 750 V |
| VF | 1.43 V |
| Voltage Class max | 750 V |
Ordering codes (OPN)
| FF300R08W2P2B11ABOMA1 | active and preferred, package AG-EASY2BA-7511, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet FF300R08W2P2-B11A |
