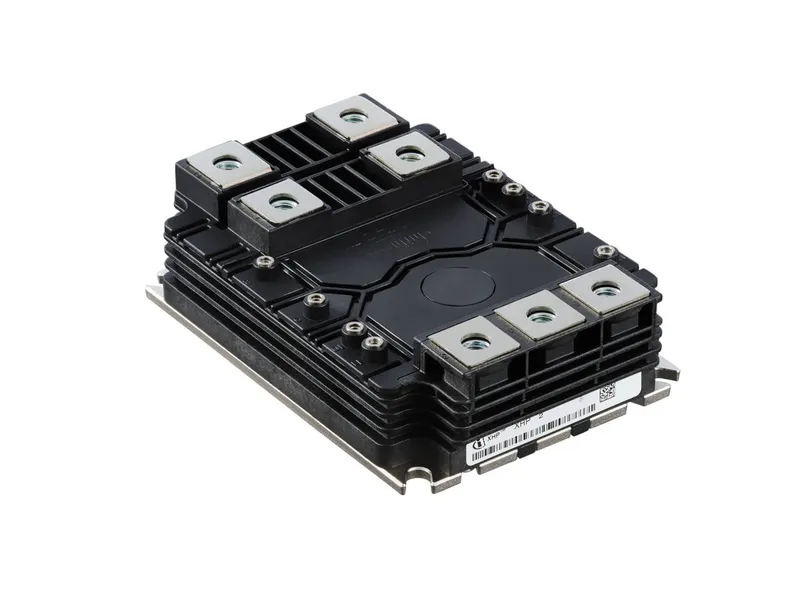

Infineon FF1400R23T2E7P-B5

2300 V, 1400 A dual IGBT module

MPN: FF1400R23T2E7P-B5
Category: IGBT Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon FF1400R23T2E7P-B5?

Infineon FF1400R23T2E7P-B5: 2300 V, 1400 A dual IGBT module in XHP™ 2 housing (IGBT7 - E7). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	half-bridge
Dimensions (length)	140 mm
Dimensions (width)	100 mm
Features	TIM
Features	6 kV isolation
Housing	XHP™ 2
IC(nom) / IF(nom)	1400 A
IC max	1400 A
Qualification	Industrial
Technology	IGBT7 - E7
VCE(sat) (Tvj=25°C typ)	1.85 V
VCES / VRRM	2300 V
VF (Tvj=25°C typ)	3.05 V
Voltage Class max	2300 V

Ordering codes (OPN)

FF1400R23T2E7PB5BPSA1

active and preferred, package AG-XHP2K23, RoHS

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet FF1400R23T2E7P-B5PDF

FF1400R23T2E7P-B5: frequently asked questions

When can FF1400R23T2E7P-B5 be shipped?

FF1400R23T2E7P-B5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FF1400R23T2E7P-B5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FF1400R23T2E7P-B5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF1400R23T2E7P-B5, subject to availability and destination.
