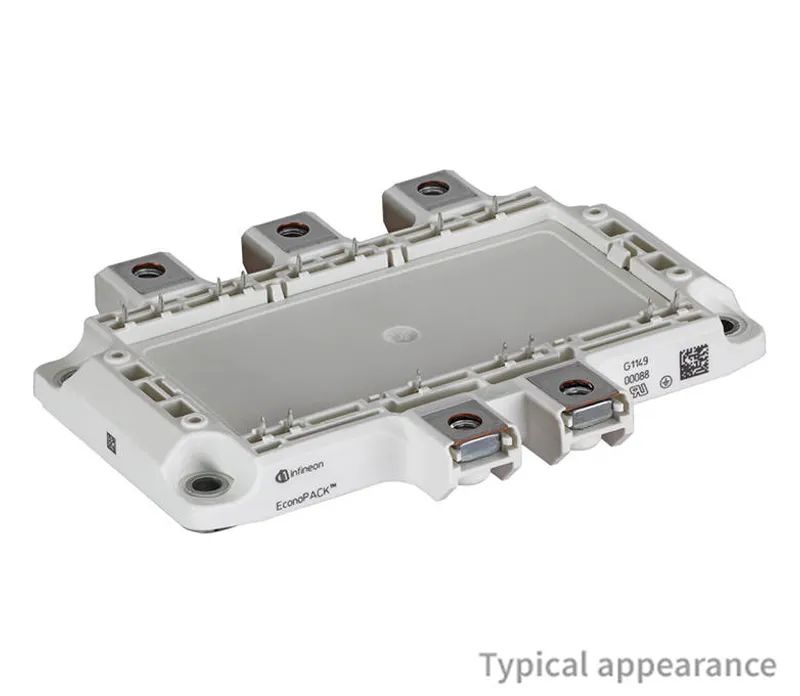

Infineon FD300R07PE4-B6 – 650 V, 300 A chopper IGBT module
Discontinued by Infineon — we can still source the original FD300R07PE4-B6 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IGBT Modules |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the FD300R07PE4-B6 now that it is discontinued?
Yes. Infineon has discontinued the FD300R07PE4-B6, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can FD300R07PE4-B6 be shipped?
FD300R07PE4-B6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FD300R07PE4-B6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FD300R07PE4-B6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD300R07PE4-B6, subject to availability and destination.
Infineon FD300R07PE4-B6: 650 V, 300 A chopper IGBT module in EconoPACK™ 4 housing (IGBT4 - E4). Discontinued by Infineon. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Configuration | Chopper |
| Dimensions (length) | 130 mm |
| Dimensions (width) | 70.6 mm |
| Features | Solder pin |
| Housing | EconoPACK™ 4 |
| IC(nom) / IF(nom) | 300 A |
| IC max | 300 A |
| Qualification | Industrial |
| Technology | IGBT4 - E4 |
| VCE(sat) (Tvj=25°C typ) | 1.55 V |
| VCES / VRRM | 650 V |
| VF (Tvj=25°C typ) | 1.55 V |
| Voltage Class max | 650 V |
Ordering codes (OPN)
| FD300R07PE4B6BOSA1 | discontinued, package AG-ECONO4, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet FD300R07PE4-B6 |
