Infineon F3L420R12D3H7F

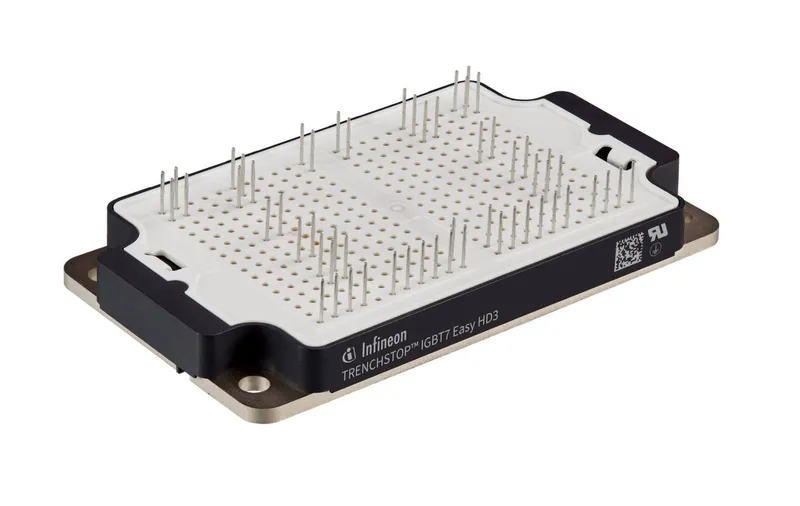

1200 V, 420 A in 3-level topology IGBT module

MPN: F3L420R12D3H7F
Category: IGBT Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon F3L420R12D3H7F?

Infineon F3L420R12D3H7F: 1200 V, 420 A in 3-level topology IGBT module in EasyPACK™ HD3 housing (IGBT7 - H7). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	3-level
Dimensions (length)	112 mm
Dimensions (width)	65.2 mm
Features	High current pin
Housing	EasyPACK™ HD3
IC(nom) / IF(nom)	420 A
IC max	420 A
Qualification	Industrial
Technology	IGBT7 - H7
VCE(sat) (Tvj=25°C typ)	1.48 V
VCES / VRRM	1200 V
VF (Tvj=25°C typ)	2.34 V
Voltage Class max	1200 V

Ordering codes (OPN)

F3L420R12D3H7FBPSA1

active and preferred, package AG-EASYHD, RoHS

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet F3L420R12D3H7FPDF

F3L420R12D3H7F: frequently asked questions

When can F3L420R12D3H7F be shipped?

F3L420R12D3H7F is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up F3L420R12D3H7F in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for F3L420R12D3H7F and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for F3L420R12D3H7F, subject to availability and destination.
