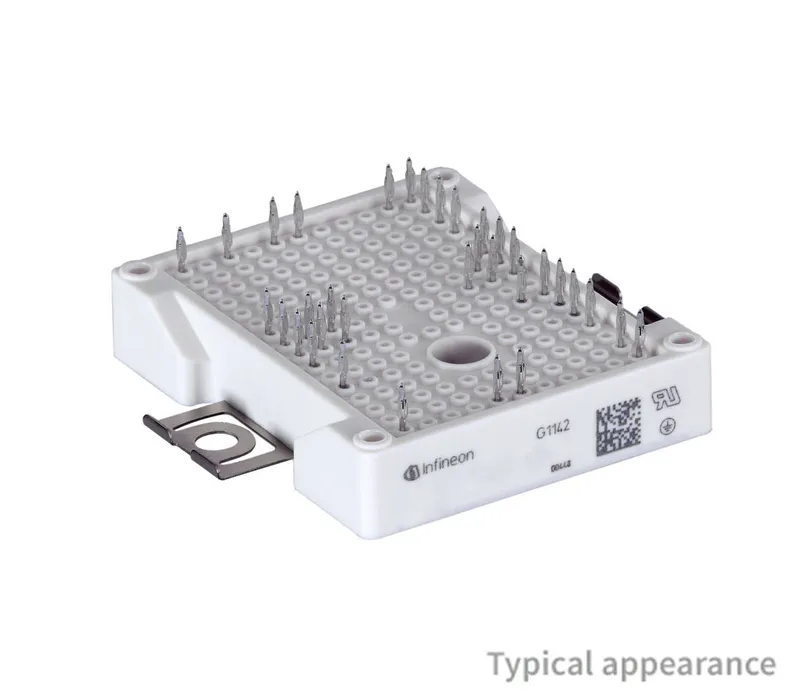

Infineon F3L100R07W2H3-B11 – 650 V, 100 A 3-level IGBT module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IGBT Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can F3L100R07W2H3-B11 be shipped?
F3L100R07W2H3-B11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up F3L100R07W2H3-B11 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for F3L100R07W2H3-B11 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for F3L100R07W2H3-B11, subject to availability and destination.
Infineon F3L100R07W2H3-B11: 650 V, 100 A 3-level IGBT module in EasyPACK™ 2B housing (IGBT3 - H3). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Configuration | 3-level |
| Features | PressFIT |
| Housing | EasyPACK™ 2B |
| IC(nom) / IF(nom) | 100 A |
| IC max | 100 A |
| Qualification | Industrial |
| Technology | IGBT3 - H3 |
| VCE(sat) (Tvj=25°C typ) | 1.68 V |
| VCES | 650 V |
| VF (Tvj=25°C typ) | 1.55 V |
| Voltage Class max | 650 V |
Ordering codes (OPN)
| F3L100R07W2H3B11BPSA1 | active and preferred, package AG-EASY2B, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet F3L100R07W2H3-B11 |
