Infineon DZ540N26K

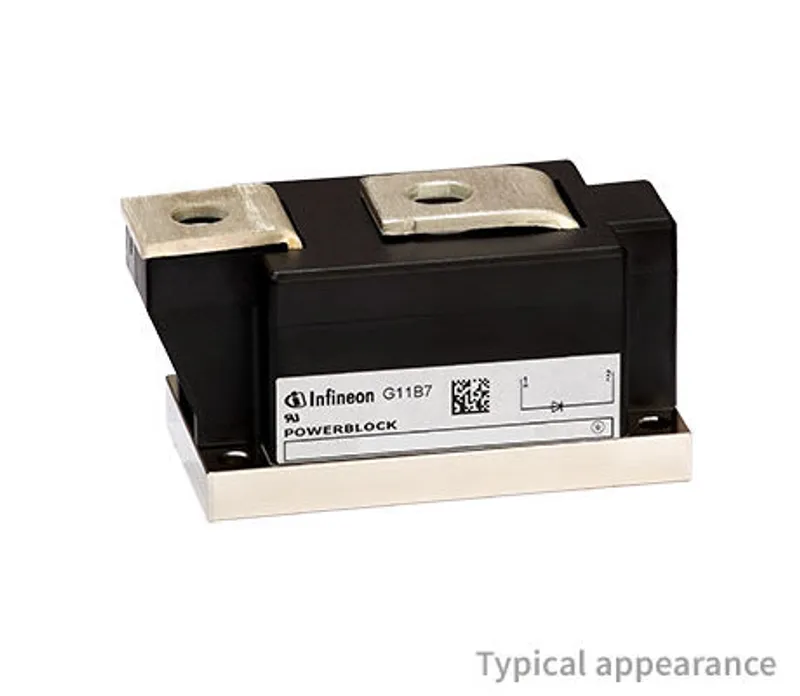

50 mm Single Rectifier Diode Module with 2600 V in pressure contact technology

MPN: DZ540N26K
Category: Thyristor & Diode Modules

Price and lead time confirmed within 1 business day

Discontinued by Infineon — we can still source the original DZ540N26K (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon DZ540N26K?

Infineon DZ540N26K: 50 mm Single Rectifier Diode Module with 2600 V in pressure contact technology. Discontinued by Infineon. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	Single Rectifier Diode
Housing	50 mm
IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)	540/100
IFSM / ITSM [A] (@10ms, Tvj max)	14000
Product Line	Power Block
rT [mΩ] (@Tvj max)	0.31
RthJC [K/W] (@180° el sin)	0.078
Tvj [°C]	150
VDRM / VRRM [V]	2600
VT0 [V] (@Tvj max)	0.78
∫I2dt [A²s · 103] (@10ms, Tvj max)	980

Ordering codes (OPN)

DZ540N26KHPSA1

discontinued, package BG-PB501-1, RoHS

DZ540N26K: frequently asked questions

Can I still buy the DZ540N26K now that it is discontinued?

Yes. Infineon has discontinued the DZ540N26K, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can DZ540N26K be shipped?

DZ540N26K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DZ540N26K in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DZ540N26K and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ540N26K, subject to availability and destination.
