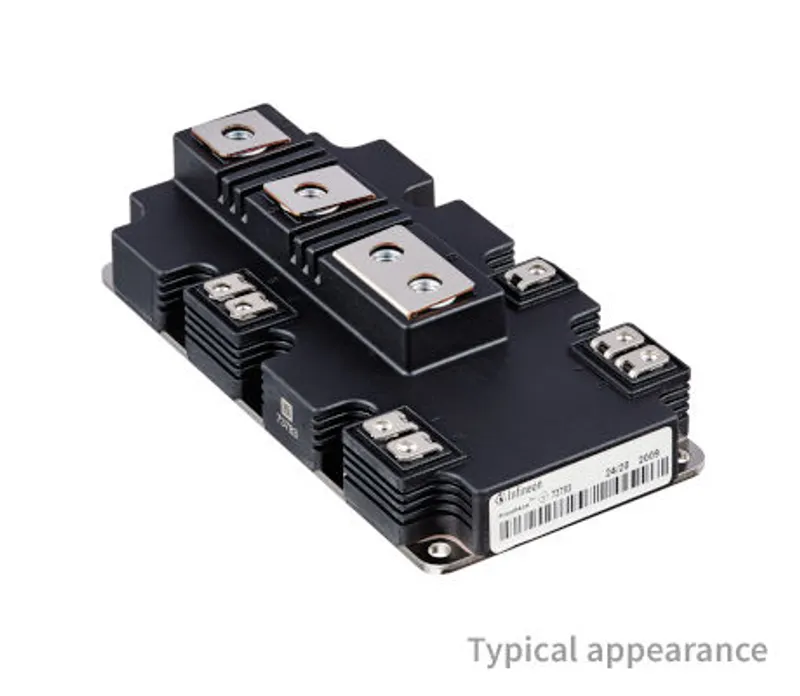

Infineon DF650R17IE4

1700 V, 650 A chopper IGBT module

MPN: DF650R17IE4
Category: IGBT Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon DF650R17IE4?

Infineon DF650R17IE4: 1700 V, 650 A chopper IGBT module in PrimePACK™ 2 housing (IGBT4 - E4). Infineon status: not for new design — still supplied, but not recommended for new designs. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	Chopper
Dimensions (length)	172 mm
Dimensions (width)	89 mm
Housing	PrimePACK™ 2
IC(nom) / IF(nom)	650 A
IC max	650 A
Qualification	Industrial
Technology	IGBT4 - E4
VCE(sat) (Tvj=25°C typ)	2 V
VCES / VRRM	1700 V
VF (Tvj=25°C typ)	1.85 V
Voltage Class max	1700 V

Ordering codes (OPN)

DF650R17IE4BOSA1

not for new design, package AG-PRIME2, RoHS

DF650R17IE4: frequently asked questions

When can DF650R17IE4 be shipped?

DF650R17IE4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DF650R17IE4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DF650R17IE4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DF650R17IE4, subject to availability and destination.
