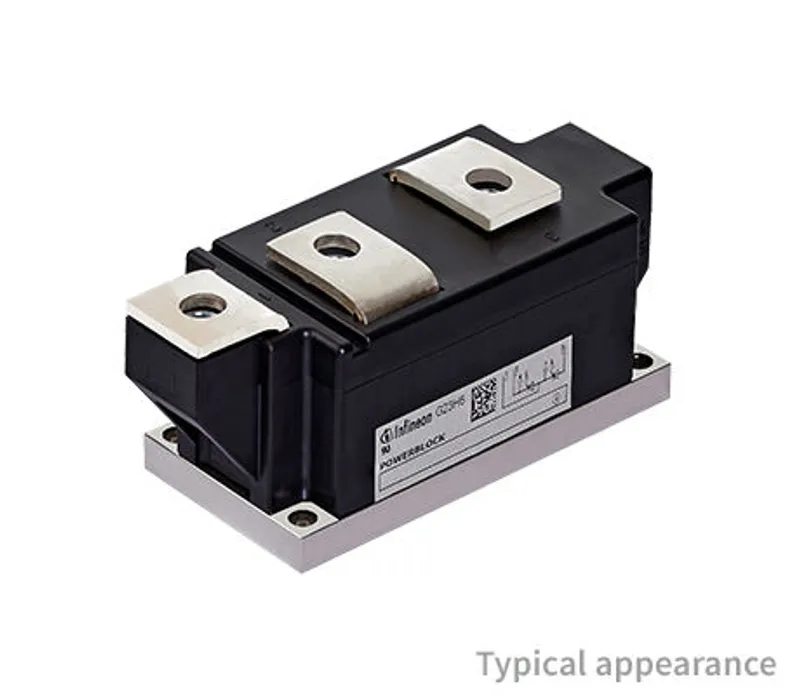

Infineon DD540N26K – 60 mm Rectifier Diode with 2600 V in pressure contact technology
Discontinued by Infineon — we can still source the original DD540N26K (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the DD540N26K now that it is discontinued?
Yes. Infineon has discontinued the DD540N26K, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can DD540N26K be shipped?
DD540N26K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DD540N26K in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DD540N26K and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DD540N26K, subject to availability and destination.
Infineon DD540N26K: 60 mm Rectifier Diode with 2600 V in pressure contact technology. Discontinued by Infineon. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Configuration | Rectifier Diode |
| Housing | 60 mm |
| IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin) | 540/100 |
| IFSM / ITSM [A] (@10ms, Tvj max) | 14000 |
| Product Line | Power Block |
| rT [mΩ] (@Tvj max) | 0.31 |
| RthJC [K/W] (@180° el sin) | 0.078 |
| Tvj [°C] | 150 |
| VDRM / VRRM [V] | 2600 |
| VT0 [V] (@Tvj max) | 0.78 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 980 |
Ordering codes (OPN)
| DD540N26KHPSA1 | discontinued, package BG-PB60-1, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet DD540N26K |
