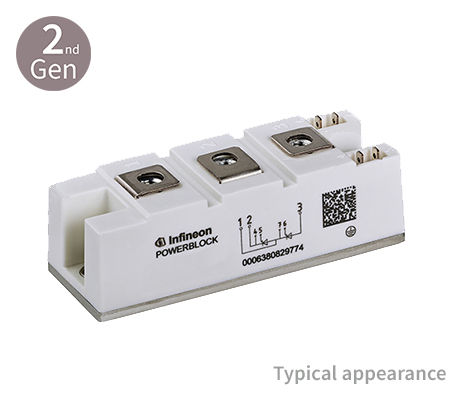

Infineon DD220N22S

34 mm Rectifier Diode Module with 2200 V in solder bond technology

MPN: DD220N22S
Category: Thyristor & Diode Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon DD220N22S?

Infineon DD220N22S: 34 mm Rectifier Diode Module with 2200 V in solder bond technology. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	Rectifier Diode
Housing	34 mm
IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)	226/100
IFSM / ITSM [A] (@10ms, Tvj max)	4800
Product Line	Eco Block
rT [mΩ] (@Tvj max)	0.95
RthJC [K/W] (@180° el sin)	0.16
Tvj [°C]	150
VDRM / VRRM [V]	2200
VT0 [V] (@Tvj max)	0.85
∫I2dt [A²s · 103] (@10ms, Tvj max)	115.2

Ordering codes (OPN)

DD220N22SHPSA1

active and preferred, package BG-PB34SB-1, RoHS

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet DD220N22SPDF

DD220N22S: frequently asked questions

When can DD220N22S be shipped?

DD220N22S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DD220N22S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DD220N22S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DD220N22S, subject to availability and destination.
