Infineon DD180N22S

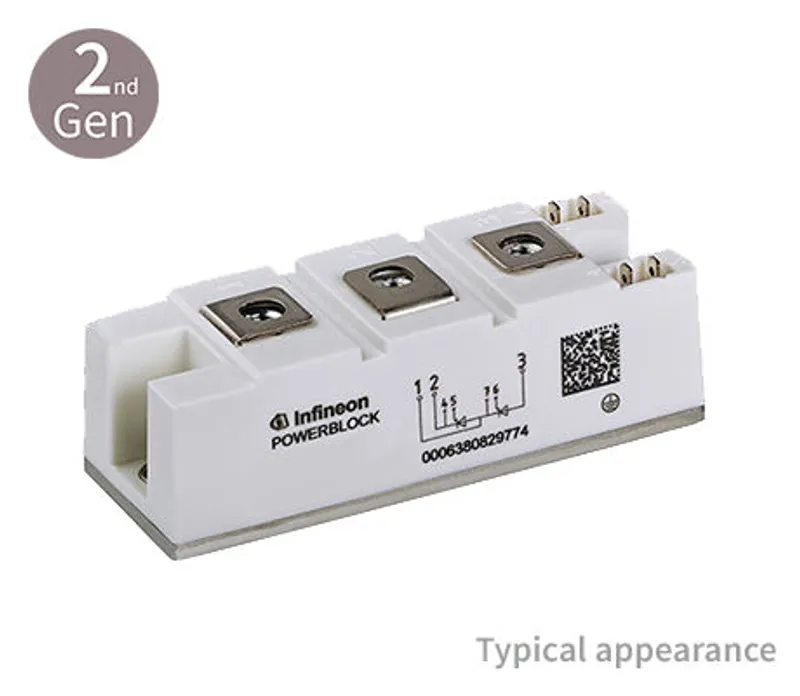

34 mm Rectifier Diode Module with 2200 V in solder bond technology

MPN: DD180N22S
Category: Thyristor & Diode Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon DD180N22S?

Infineon DD180N22S: 34 mm Rectifier Diode Module with 2200 V in solder bond technology. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	Rectifier Diode
Housing	34 mm
IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)	174/100
IFSM / ITSM [A] (@10ms, Tvj max)	5000
Product Line	Eco Block
rT [mΩ] (@Tvj max)	0.95
RthJC [K/W] (@180° el sin)	0.16
Tvj [°C]	135
VDRM / VRRM [V]	2200
VT0 [V] (@Tvj max)	0.85
∫I2dt [A²s · 103] (@10ms, Tvj max)	125

Ordering codes (OPN)

DD180N22SHPSA1

active and preferred, package BG-PB34SB-1, RoHS
