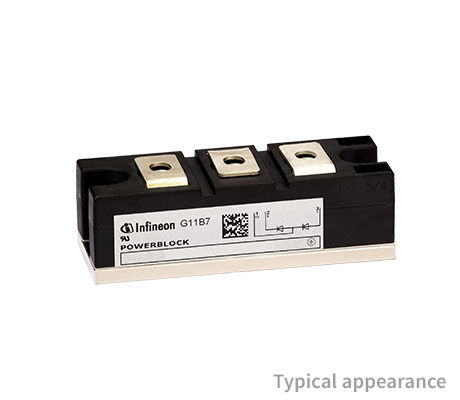

Infineon DD160N22K

34 mm Rectifier Diode Module with 2200 V in pressure contact technology

MPN: DD160N22K
Category: Thyristor & Diode Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon DD160N22K?

Infineon DD160N22K: 34 mm Rectifier Diode Module with 2200 V in pressure contact technology. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	Rectifier Diode
Housing	34 mm
IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)	160/100
IFSM / ITSM [A] (@10ms, Tvj max)	4600
Product Line	Power Block
rT [mΩ] (@Tvj max)	1
RthJC [K/W] (@180° el sin)	0.26
Tvj [°C]	150
VDRM / VRRM [V]	2200
VT0 [V] (@Tvj max)	0.8
∫I2dt [A²s · 103] (@10ms, Tvj max)	105.8

Ordering codes (OPN)

DD160N22KHPSA1	discontinued, package BG-PB34-1, RoHS
DD160N22KHPSA2	active and preferred, package BG-PB34AT-1, RoHS

DD160N22K: frequently asked questions

When can DD160N22K be shipped?

DD160N22K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DD160N22K in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DD160N22K and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DD160N22K, subject to availability and destination.
