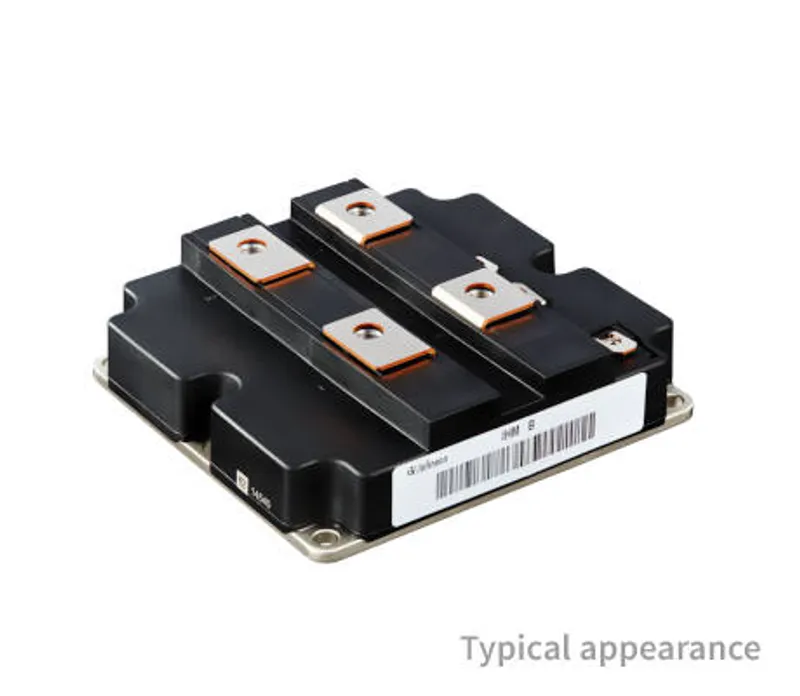

Infineon DD1200S12H4 – 1200 V, 1200 A diodes IGBT module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IGBT Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can DD1200S12H4 be shipped?
DD1200S12H4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DD1200S12H4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DD1200S12H4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DD1200S12H4, subject to availability and destination.
Infineon DD1200S12H4: 1200 V, 1200 A diodes IGBT module in IHM B housing (Diode). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Configuration | Diodes |
| Dimensions (width) | 140 mm |
| Dimensions (length) | 130 mm |
| Housing | IHM B |
| IC(nom) / IF(nom) | 1200 A |
| IC max | 1200 A |
| Qualification | Industrial |
| Technology | Diode |
| VCE(sat) (Tvj=25°C typ) | 1.8 V |
| VF (Tvj=25°C typ) | 1.8 V |
| Voltage Class max | 1200 V |
Ordering codes (OPN)
| DD1200S12H4HOSA1 | active, package AG-IHMB130, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet DD1200S12H4 |
