Infineon D3041N65T
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can D3041N65T be shipped?
D3041N65T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up D3041N65T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for D3041N65T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D3041N65T, subject to availability and destination.

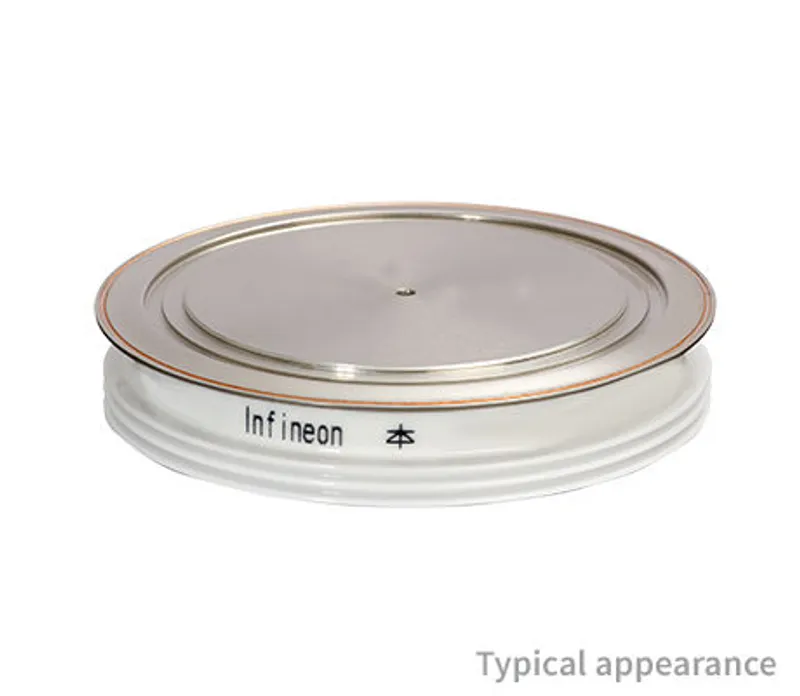

Infineon D3041N65T: Infineon D3041N65T in Disc dia 120mm height 26mm / Ceramic housing. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Clamping force [kn] range | 36 to 52 |
| Configuration | Rectifier Diodes |
| Housing | Disc dia 120mm height 26mm / Ceramic |
| I(FSM) max | 53000 A |
| IFAVM/TC [A/°C] (@180° el sin) | 3040/100 |
| IFAVM/Tc | 3040/100 (180 ° el sin) |
| IFSM [A] (@10ms, Tvj max) | 53000 |
| rT [mΩ] (@Tvj max) max | 0.22 |
| RthJC [K/kW] (@180° el sin) max | 8.55 |
| Tvj [°C] max | 160 |
| VF/IF [V/kA] (@Tvj max) | 1.7/4.0 |
| VRRM [V] | 6500 |
| VRRM max | 6500 V |
| VT0 [V] (@Tvj max) max | 0.84 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 14040 |
Ordering codes (OPN)
| D3041N65TXPSA1 | active and preferred, package BG-D12026K-1, RoHS |
