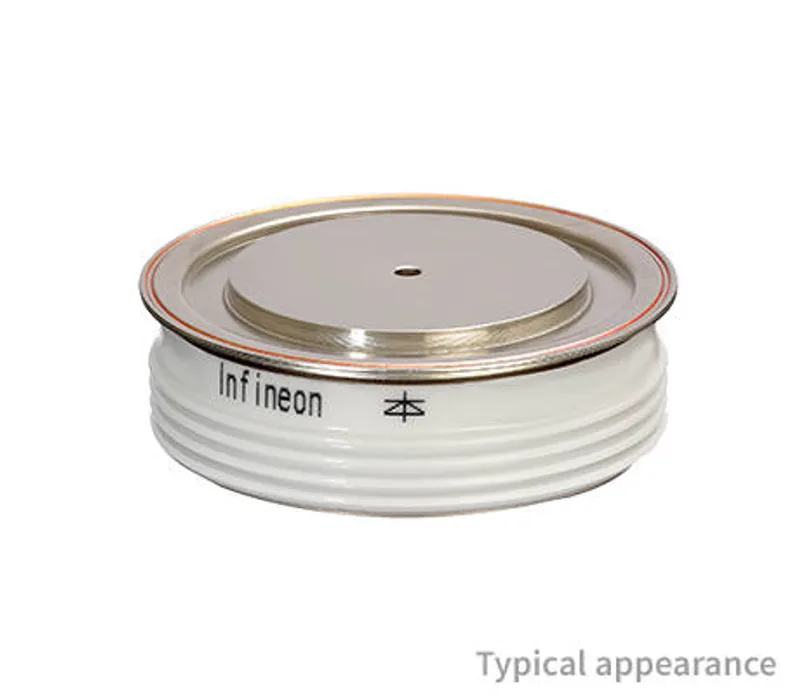

Infineon D2650N24T-VF – 2400 V, rectifier diodes
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can D2650N24T-VF be shipped?
D2650N24T-VF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up D2650N24T-VF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for D2650N24T-VF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D2650N24T-VF, subject to availability and destination.
Infineon D2650N24T-VF: 2400 V, rectifier diodes in Disc dia 75mm height 26mm / Ceramic. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Clamping force [kn] range | 24 to 60 |
| Configuration | Rectifier Diodes |
| Housing | Disc dia 75mm height 26mm / Ceramic |
| I(FSM) max | 41000 A |
| IFAVM/TC [A/°C] (@180° el sin) | 3520/100 |
| IFAVM/Tc | 3520 / 100° (180° el sin) |
| IFSM [A] (@10ms, Tvj max) | 41000 |
| rT [mΩ] (@Tvj max) max | 0.15 |
| RthJC [K/kW] (@180° el sin) max | 16.9 |
| Tvj [°C] max | 180 |
| VF/IF [V/kA] (@Tvj max) | 2.25/9.0 |
| VRRM [V] | 2400 |
| VRRM max | 2400 V |
| VT0 [V] (@Tvj max) max | 0.82 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 5611 |
Ordering codes (OPN)
| D2650N24TVFXPSA1 | active and preferred |
More Infineon parts
Available on requestD255N rectifier diode disc, up to 800 V

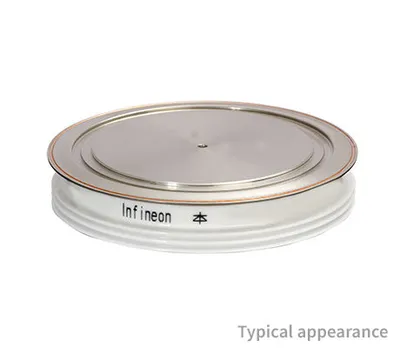

Available on requestD2601NH pulsed-power disc, up to 10000 VAvailable on requestD2659N rectifier diode disc, up to 3000 V, 75/26 mm press-packAvailable on requestD269N rectifier diode disc, up to 4500 V, 57/26 mm press-packAvailable on requestD281S fast diode disc, up to 7000 VAvailable on requestD291S fast diode disc, up to 4500 V
