Infineon D2450N06T
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can D2450N06T be shipped?
D2450N06T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up D2450N06T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for D2450N06T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D2450N06T, subject to availability and destination.

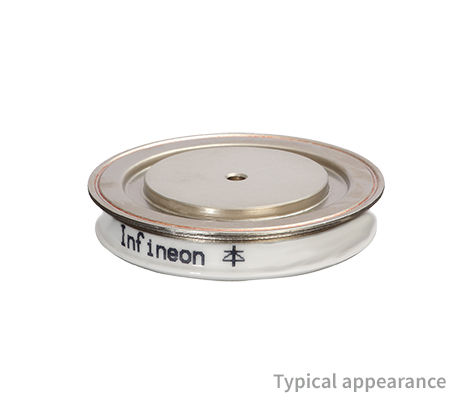

Infineon D2450N06T: Infineon D2450N06T in Disc dia 58mm height 14mm / Ceramic housing. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Clamping force [kn] range | 12 to 24 |
| Configuration | Rectifier Diodes |
| Housing | Disc dia 58mm height 14mm / Ceramic |
| I(FSM) max | 4000 A |
| IFAVM/TC [A/°C] (@180° el sin) | 2452/100 |
| IFAVM/Tc | 2452/100 (180 ° el sin) |
| IFSM [A] (@10ms, Tvj max) | 4000 |
| rT [mΩ] (@Tvj max) max | 0.1 |
| RthJC [K/kW] (@180° el sin) max | 25.3 |
| Tvj [°C] max | 180 |
| VF/IF [V/kA] (@Tvj max) | 1.5/7.7 |
| VRRM [V] | 600 |
| VRRM max | 600 V |
| VT0 [V] (@Tvj max) max | 0.7 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 4061 |
Ordering codes (OPN)
| D2450N06TXPSA1 | active and preferred, package BG-D5814K0-1, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet D2450N06T |
