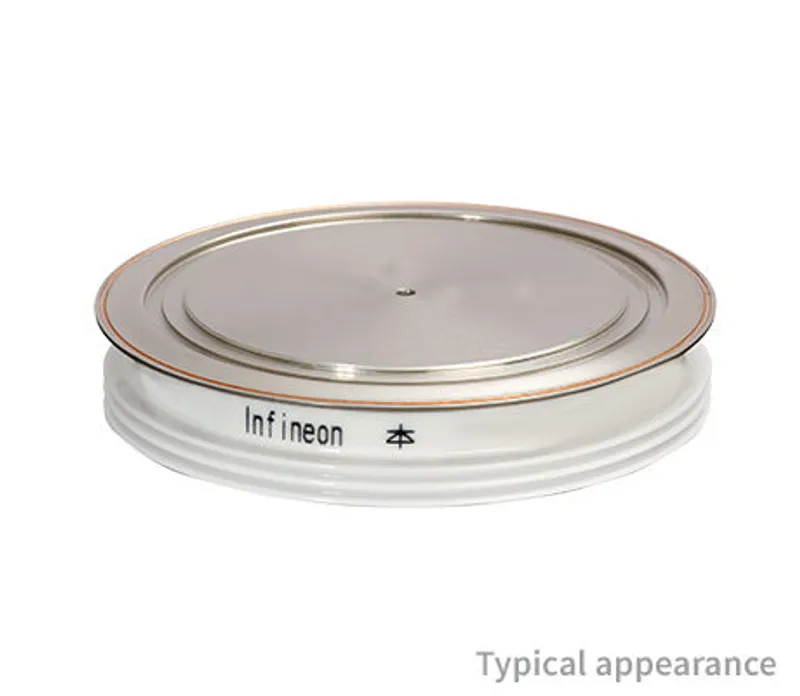

Infineon D1331SH45T – 4500 V, igct/igbt - freewheeling diodes
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can D1331SH45T be shipped?
D1331SH45T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up D1331SH45T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for D1331SH45T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D1331SH45T, subject to availability and destination.
Infineon D1331SH45T: 4500 V, igct/igbt - freewheeling diodes in Disc dia 120mm height 26mm / Ceramic. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Clamping force [kn] range | 36 to 52 |
| Configuration | IGCT/IGBT - Freewheeling Diodes |
| Housing | Disc dia 120mm height 26mm / Ceramic |
| I(FSM) max | 28000 A |
| IFAVM/TC [A/°C] (@180° el sin) | 1310/85 |
| IFSM [A] (@10ms, Tvj max) | 28000 |
| IRM [A] (@di/dt = 1000 A/µs, IFM = 2.5 kA, Tvj max) max | 1500 |
| Qr [mAs] (@di/dt = 1000 A/µs, IFM = 2.5 kA, Tvj max) max | 3.5 |
| rT [mΩ] (@Tvj max) max | 0.948 |
| RthJC [K/kW] (@DC) max | 7.5 |
| Tvj [°C] max | 140 |
| VF/IF [V/kA] (@Tvj max) | 5.6/2.5 |
| VR(D) [kV] (@TC = 25°) | 2.8 |
| VRRM [V] | 4500 |
| VRRM max | 4500 V |
| VT0 [V] (@Tvj max) max | 1.83 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 3920 |
Ordering codes (OPN)
| D1331SH45TXPSA1 | active and preferred |
More Infineon parts
Available on requestD121K rectifier diode disc, up to 2000 VAvailable on requestD121N rectifier diode disc, up to 2000 V
Available on request4500 V, gto - freewheeling diodes
Available on request4500 V, gto - freewheeling diodesAvailable on requestD138S fast diode disc, up to 1400 V, 41/14 mm press-packAvailable on requestD1408S fast diode disc, up to 3000 V, 75/14 mm press-pack
Available on request4500 V GTO - Freewheeling diode disc
