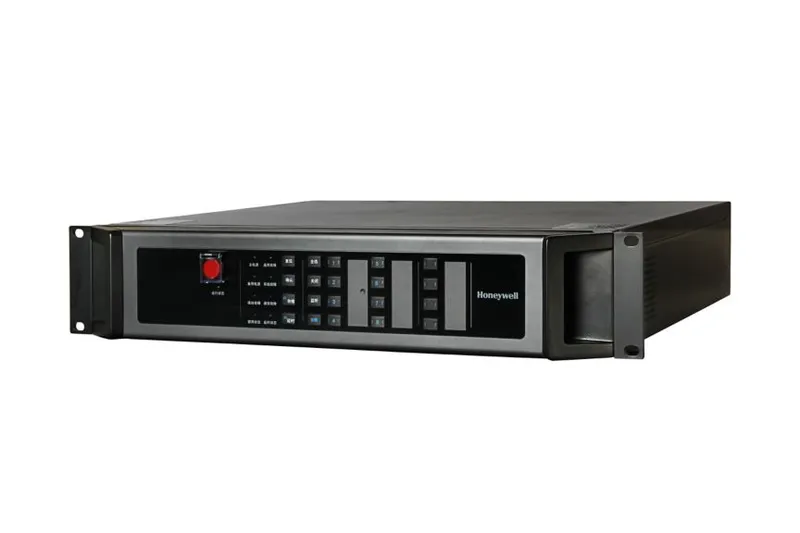

Honeywell – X-DCS2000(PLUS-DP) 8 Channel Networkable IP Controller

X-DCS2000 Digital Integrated System Manager

(abbr.DCS) is the basic unit of X-618 Public Address and

Voice Alarm System. DCS integrates plentiful functions

such as zone expansion, multiple audio sources support,

audio file storage, net audio,broadcasting, zone control,

monitoring, fault diagnosis etc. With powerful audio matrix

structure, X-DCS2000 is capable of bringing value to big

infrastructures in terms of saving extension and cabling.

Features & Benefits:

DCS can connect up to 8 amplifier channels and support 4 x 8 audio matrix

for both local audio input and network audio routing.

DCS has 8 dry-contact outputs that can be used to activate external

devices. It has 8 pairs of loudspeaker line output where each one allows

multiple 70V loudspeakers to be connected in parallel. A record output port

is dedicated for external recording.

DCS also has 8 dry-contact inputs that can be linked with fire alarm

controller which trigger alarms and emergency evacuation announcements

via X-618 MEGA when fire happens. On the rear panel, there are 4 network

A/D audio input, which provide connections to external audio sources such

as CD/DVD, FM tuner etc. With addition X-ND100 Noise Detector, AVC

(Automatic Volume Control) function can be enabled so that volume output

in the implemented zones can be optimized automatically according to the

ambinent noise level varies. User can set the phantom power and input gain

of each volume control input on the rear panel

Certifications:

EN54-16

Honeywell X-DCS2000(PLUS-DP) — X-618 Network Controller. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications
