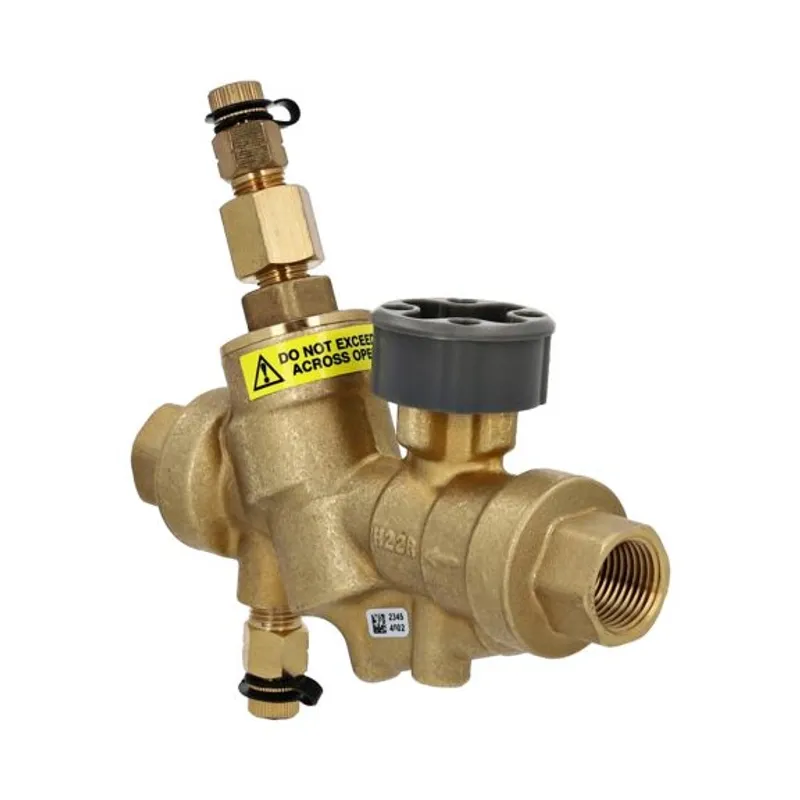

Honeywell – VRN262SX0000 VRN Pressure Independent Control Valves And Actuators

The VRN2 two-way dynamic pressure-regulating control valves maintain constant flow of hot or chilled water with glycol solutions up to 50% in closed-loop heating, ventilating, and air conditioning systems, within the specified pressure drop ranges of each model number. These valve assemblies can be ordered with or without factory-mounted actuators.

Features & Benefits:

Sizes from 1/2 to 3 in. with internal (female) NPT connections.

Regulated flow rates available from 1 to 95 gpm with multiple maximum flow rates available per valve size.

Differential pressure regulator for constant pressure drop across valve seat.

Positive pressure, rolling diaphragm regulator design for flow control accuracy of ±5%.

Equal percentage flow characteristic using patented flow control ball insert.

Patented ball seals for low operating torque.

Nickel-chrome plated brass or stainless steel trim.

Choice of factory-installed actuation: floating, modulating (2-10 V), spring return or non-spring return 2-Position, Spring Return Modulating/Floating, Spring Return Sylk-enabled.

Removable, manual operating handle to control valve during installation or in an event of power failure.

Upstream Test Port for venting or pressure gauge attachment.

Three actuator orientations on the valve for cramped spaces.

Integral snubber eliminates effect of system pressure fluctuations and entrapped air while improving flow performance.

Honeywell VRN262SX0000 — The VRN2 two-way dynamic pressure-regulating control valves maintain constant flow of hot or chilled water in HVAC systems. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
