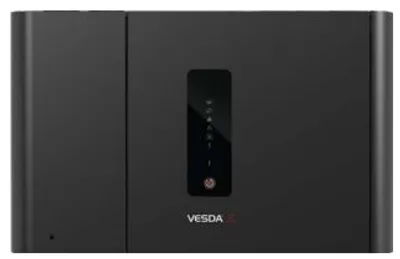

Honeywell – VEP-A00-1P-EBTI Intelligent VESDA-E VEP EBTI

The VESDA-E VEP series of smoke detectors bring the latest and most advanced detection technology to provide very early warning and the best nuisance alarm rejection to a wide range of applications, and now the integrated model (VEP-EBTI) has the ability to directly work with esserbus® and esserbus®-PLus through the built-in transponder which allows the connection into the ESSER range of fire alarm control panels. It is compatible with the FlexES Control panel with the pre-alarm feature supported. It is also compatible with IQ8Control and Compact panels but without the pre-alarm feature. Built on the Flair detection technology and years of application experience, VEP detectors achieve consistent performance over their lifetime via absolute calibration. In addition, the VEP delivers a range of revolutionary features that provide user value.

Features & Benefits:

One and four pipe models for different applications

Flair detection technology delivers reliable very early warning in a wide range of environments with minimal nuisance alarms

Multi stage filtration and optical protection with clean air barriers ensures lifetime detection performance

Four alarm levels and a wide sensitivity range deliver optimum protection for the widest range of applications

Intuitive LCD icon display provides instant status information for immediate response

Flow fault thresholds per port accommodate varying airflow conditions

Smart on-board filter retains dust count and remaining filter life for predictable maintenance

Extensive event log (20,000 events) for event analysis and system diagnostics

AutoLearn™ smoke and flow for reliable and rapid commissioning

Referencing to accommodate external environmental conditions to minimise nuisance alarms

Remote monitoring with iVESDA for system review and proactive maintenance

Ethernet for connectivity with Xtralis software for configuration, secondary monitoring and maintenance.

USB for PC configuration, and firmware upgrade using a memory stick

Two pre-configured GPI’s; 1 unmonitored for Remote Reset function through the panel, and 1 monitored for normal detector operation (inaccessible to the user)

Field replaceable sub-assemblies enable faster service and maximum uptime

Direct connection to the esserbus® loop technology of ESSER fire alarm control panels without the need for extra equipment or loop modules

Integrated loop isolator

Evaluation of faults of the VESDA-E detector

Evaluation of pre-alarms of the VESDA-E detector in combination with FlexeS Control

Signal evaluation and loop monitoring in compliance with EN 54-13

Optional low voltage monitoring of the external power supply

Three spare inputs to add e.g. detailed PSU fault warnings like battery fault, earth fault, mains fault to the system

Programmable reset functionality of the detector.

Secure start-up via tools 8000

Individual programming via tools 8000

Certifications:

VdS

CE

EN 54-17

EN 54-18

EN 54-20

Honeywell Xtralis VEP-A00-1P-EBTI — The VESDA-E VEP series of smoke detectors bring the latest and most advanced detection technology to a wide range of applications. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications
