Honeywell V5833C1009
V5833C Series 3-Way Short Stroke Linear Mixing Valves with Bypass, Flat Seal, PN16.
- MPN
- V5833C1009
Discontinued by Honeywell — we can still source the original V5833C1009 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

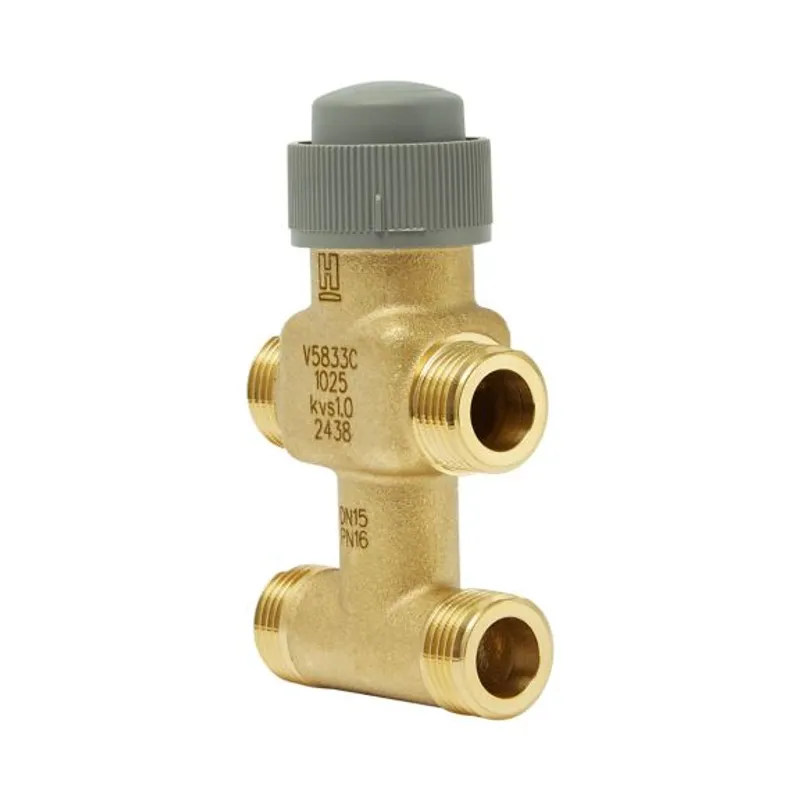

What is the Honeywell V5833C1009?
V5833C series is available in DN15 and DN20 size, with external pipe thread, flat seal, and four pipe connections for maximum piping flexibility. Two pipe connections on the B-port allows for both supply and return pipes to be piped in parallel. An impressive range of KVS values are available, to suit a wide range of applications. 2.5mm stroke valves are available for 2-P on/off control, as well as 6.5mm stroke versions for modulating control.
Valves are used with compact thermo-electric and electric actuators for a compact assembly. Flow characteristic for 6.5mm stroke valves is equal percentage on the A-port, and linear on the B-port (with one size smaller KVS value for optimum control). Valve action: A-port is open with the stem in its bottom position.
Honeywell V5833C1009 — V5833C series 3-way mixing valves with bypass piping are available in DN15 and DN20 sizes, for use in compact zone valve applications. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued by Honeywell |
Ordering codes
| Part numbers on this product page | V5833C1009, V5833C1017, V5833C1025, V5833C1033, V5833C1041, V5833C1058, V5833C1066, V5833C1140, V5833C1152, V5833C4003, V5833C4011 |
No matching specifications
V5833C1009: frequently asked questions
Can I still buy the V5833C1009 now that it is discontinued?
Yes. Honeywell has discontinued the V5833C1009, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can V5833C1009 be shipped?
V5833C1009 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V5833C1009 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V5833C1009 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V5833C1009, subject to availability and destination.
