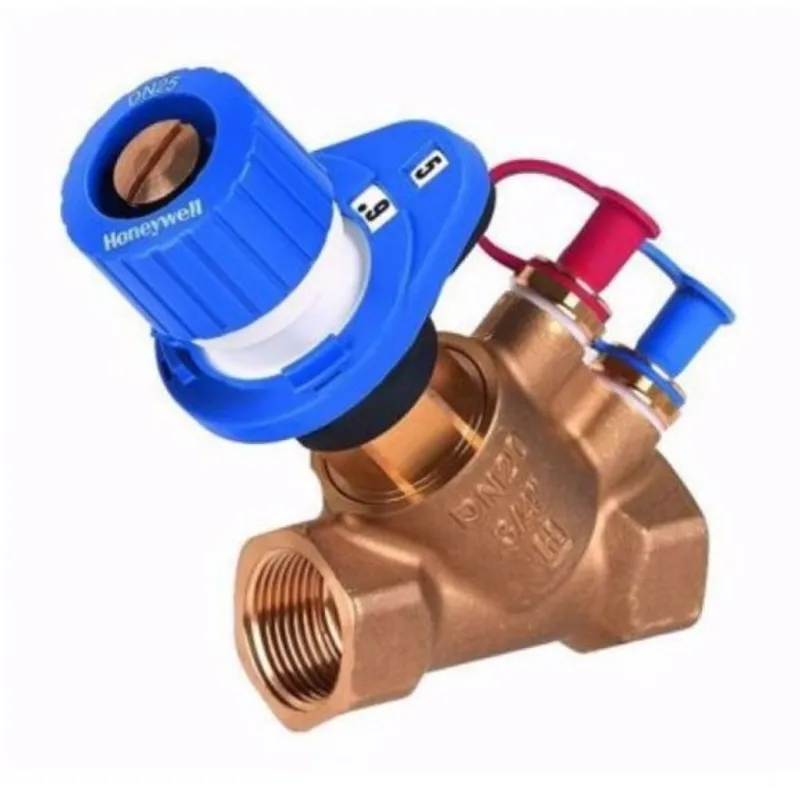

Honeywell – V5032Y0015HW Threaded balancing valve
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Honeywell HVAC Field Devices (valves, actuators, sensors) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V5032Y0015HW be shipped?
V5032Y0015HW is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V5032Y0015HW in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V5032Y0015HW and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V5032Y0015HW, subject to availability and destination.
It is suitable for use in variable and constant flow systems to manually balance the flow and to set resistances to an equal level all over the system.
V5032 Kombi-2-plus is typically used for static balancing of fan coil units, air handling units, chilled ceilings and twopipe heating systems. It can be installed on the flow or the return side, general installation behaviour is to install it on the return side.
Features & Benefits:
• Manual balancing of flow rates
– Precise presetting with numeric scale
– Concealed presetting prevents unwanted operation
• Wide range of application
– Sizes DN10 up to DN80
– Versions for standard and low flow rates available
• Easy commissioning
– Fast and safe measurement with SafeConTM
measuring connections – 6 times faster than
standard Binder connections
– DN size and settings readable on handwheel even
with insulated valve
– All functions located on one side for easier access
and use
– Optimal measuring in combination with Honeywell
BasicMes (VM242) - all flow values are already
included in the measuring device
• Maintenance friendly
– Insert fully interchangeable
– Integrated shut-off function
– Presetting is not changed during shut-off
Honeywell V5032Y0015HW — The V5032 Kombi-2-plus is a static, variable orifice separate double regulating balancing valve for the return with additional shut-off function. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
Ordering codes
| Part numbers on this product page | V5032Y0015HW, V5032Y0020HW, V5032Y0025HW, V5032Y0032HW, V5032Y0040HW, V5032Y0050HW |
