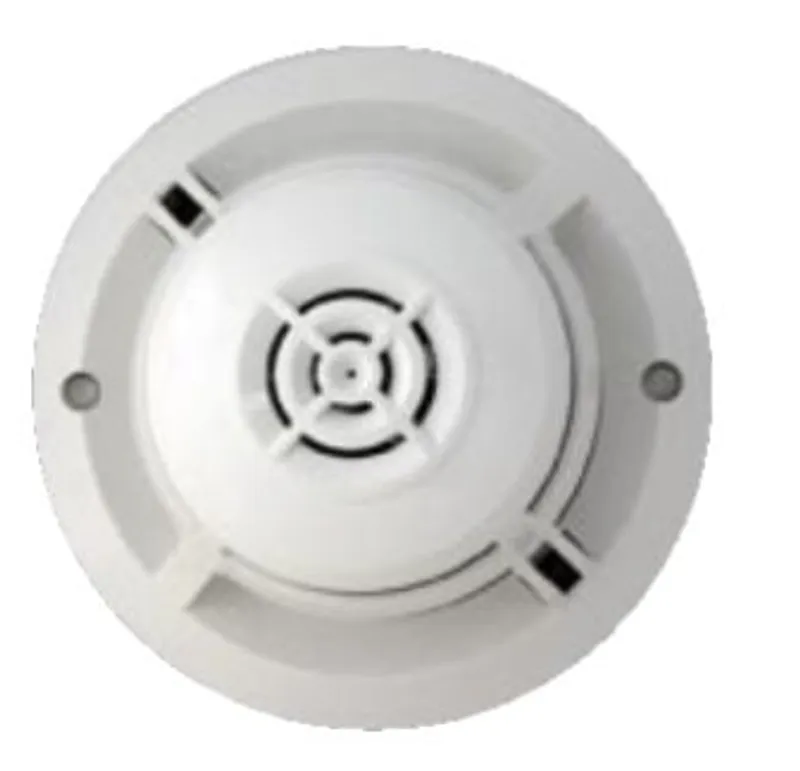

Honeywell TC850E1009
Analogue Addressable Multi-Criteria Smoke Sensor
- MPN
- TC850E1009
Discontinued by Honeywell — we can still source the original TC850E1009 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Honeywell TC850E1009?
Analogue addressable multi-criteria smoke sensors are microprocessor controlled plug-in type sensors uses software algorithms to combine carbon monoxide, photo electric, thermal and infra-red sensing elements with addressable-analogue communications giving reliable fire detection whilst allowing the detectors to reject many common causes of nuisance alarm.
Multi-criteria smoke sensors are designed for open area protection and must only be connected to control panels that use a compatible proprietary analogue addressable communication protocol for monitoring and control. Two LEDs on each sensor light provide a local 360° visible sensor indication. The LEDs can be latched on by code command from the control panel for an alarm indication. They can also be unlatched to the normal condition by code command. Remote LED indicator capability is available as an optional accessory wired to the standard base terminals. Features & Benefits:
Fully integrated infrared sensing to support the fire alarm decision
CO gas sensing for fastest response to slow developing and smouldering fires
Highest immunity to unwanted alarms
Available in TC800 protocol
Automatic drift compensation of smoke sensor and CO cell
Twin LED indicators providing 360º visibility
Wide temperature range
Built-in test switch
Stable communication with high noise immunityCertifications:
LPCB
Honeywell System Sensor TC850E1009 — Analogue addressable multi-criteria smoke sensors uses software algorithms to combine carbon monoxide, photo electric, thermal and infra-red sensing elements with addressable-analogue communications. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued by Honeywell |
| Brand line | System Sensor |
Others
| Brand | System Sensor |
Ordering codes
| Part numbers on this product page | TC850E1009, TC850E1009-IV, TC850E1009-W |
No matching specifications
TC850E1009: frequently asked questions
Can I still buy the TC850E1009 now that it is discontinued?
Yes. Honeywell has discontinued the TC850E1009, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TC850E1009 be shipped?
TC850E1009 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TC850E1009 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TC850E1009 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TC850E1009, subject to availability and destination.
