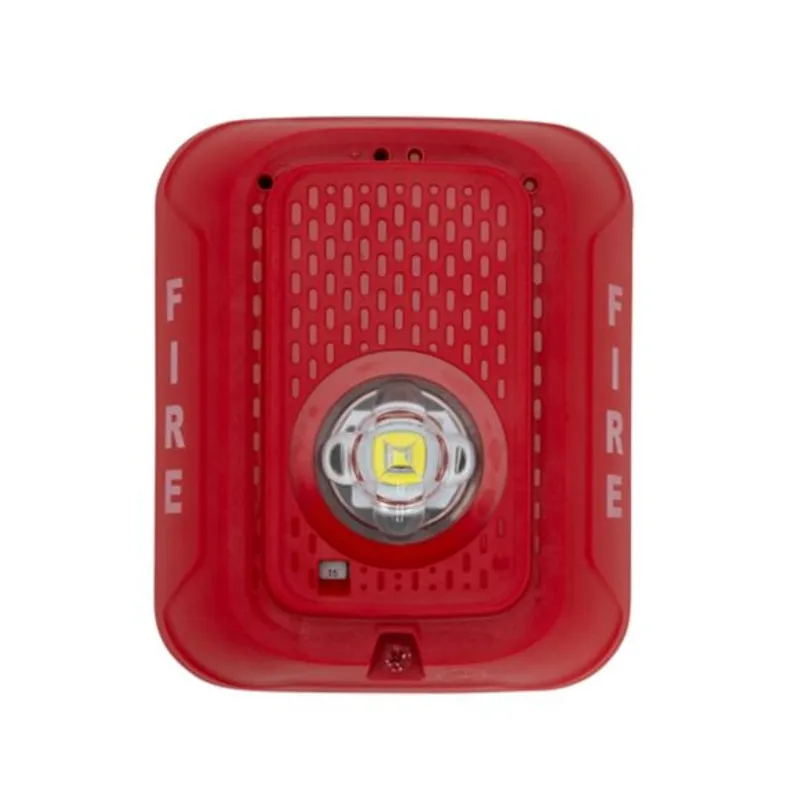

Honeywell SGRLED

L-Series LED Wall-Mount Strobe

MPN
SGRLED
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell SGRLED?

The System Sensor L-Series LED strobes are rich with features that increase application versatility, simplify installation, and maximize profits with lower current draw and modern aesthetics. LED lighting technology offers significantly lower current draw compared to older Xenon bulbs across a full candela range. This improves design flexibility for notification appliance circuits (NACs) while also reducing power supply requirements, allowing for simpler and lower-cost installations.

All devices feature plug-in designs with minimal intrusion into the backbox, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults. To further simplify installation and protect devices from construction damage, the L-Series utilizes a universal mounting plate for all models with an onboard shorting spring so installers can test wiring continuity before the device is installed. Installers can also easily adapt devices to suit a wide range of application requirements using field-selectable candela, tone, and volume settings using rotary switches.

In addition, the System Sensor L-Series with LED notification appliances offer a new diagnostic test point feature that allows you to measure device voltage with a digital voltage meter (DVM) without removing the appliance from the wall or ceiling. The DVM test points are discreetly located on the face of the notification appliance, which enables faster troubleshooting and end-of-line (EOL) voltage checks while greatly reducing the risk of misplacing or damaging appliances during troubleshooting.

Features & Benefits:

LED technology provides lower current draw

Digital Voltage Meter (DVM) diagnostic test points for Horn Strobes and Strobes

Common aesthetics across the L-Series platform

Standard and compact sizes

Tamper-resistant construction

Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185

Field-selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177

Rotary switches for candela selections

Mounting plate provides plug-in design for easier installation and shorting springs to check wiring continuity

Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices

Synchronization through use of UL approved power supplies that support System Sensor Sync protocol or System Sensor MDL3 Sync Module

Available in red and white with FIRE, ALERT, Plain, FUEGO and bilingual markings

Certifications:

UL Listed: S5512-S4011

ULC Listed: S5512-S4011

FM Approved: 3057072-FM23FPUS0195

CSFM: 7300-1653:0525; 7135-1653:0503; 7135-1653:0526

Honeywell Farenhyt, Gamewell-FCI, NOTIFIER, System Sensor SGRLED — L-Series LED strobes are rich with features that increase application versatility, simplify installation, and maximize profits with lower current draw and modern aesthetics. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Brand lineFarenhyt, Gamewell-FCI, NOTIFIER, System Sensor

Others

BrandFarenhyt, Gamewell-FCI, NOTIFIER, System Sensor
Product TypeStrobe
Mounting TypeWall

Ordering codes

Part numbers on this product pageSGRLED, SGRLED-B, SGWLED, SGWLED-B, SRLED, SRLED-B, SRLED-BP10, SRLED-P, SRLED-SP, SWLED, SWLED-ALERT, SWLED-B, SWLED-BP10, SWLED-CLR-ALERT, SWLED-P
