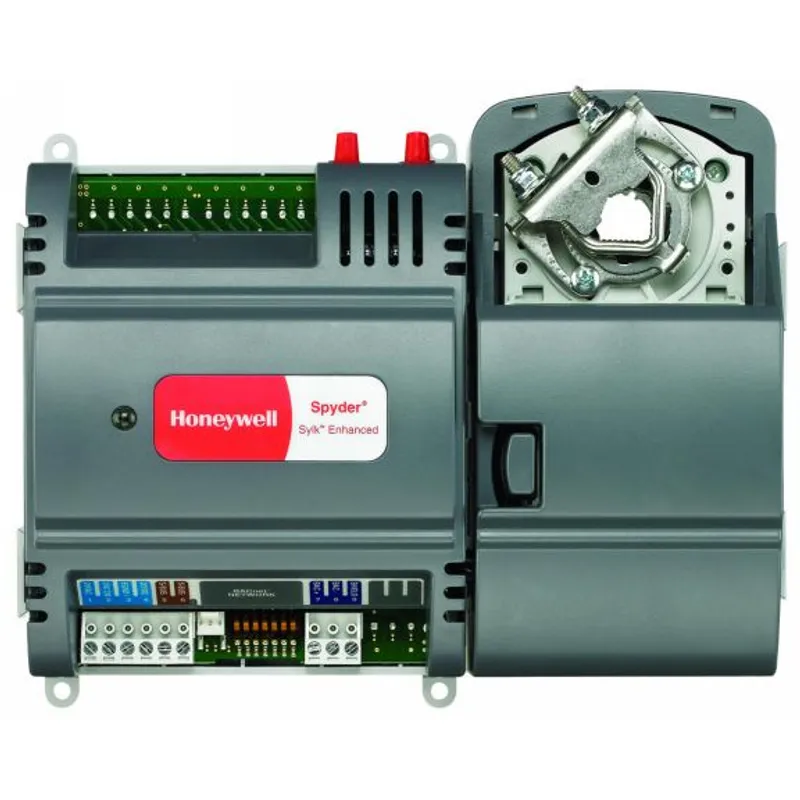

Honeywell PVB0000AS-ILC/U

Spyder® Classic BACnet® Programmable VAV Controller

MPN
PVB0000AS-ILC/U
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original PVB0000AS-ILC/U (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell PVB0000AS-ILC/U?

Spyder® BACnet® programmable VAV controllers are MS/TP network devices designed to control HVAC equipment. These controllers provide many options and advanced system features that allow state-of-the-art commercial building control. Each controller is programmable and configurable using the Niagara Framework® software.

Spyder BACnet controllers require the Spyder BACnet Programmable Feature to be licensed in the WEB pro workbench tool and the WEBs-AX™ JACE® Controller for programming and downloading. Spyder BACnet models are also available as individually licensed controllers (ILC). The ILC versions are identical in design and capability in every detail except for the licensing. The built-in individual licensing of the Spyder ILCs allows them to be programmed and downloaded with any brand of the Niagara Workbench or JACE controller. The Spyder ILCs are identified with a suffix on the part number of -ILC.

The controllers are for use in variable air volume (VAV), unitary, and advanced HVAC control applications. Each controller contains a host microcontroller to run the main HVAC application and a second microcontroller for BACnet MS/TP network communications. Each controller provides flexible, universal inputs for external sensors, digital inputs, and a combination of analog outputs and digital outputs. Features & Benefits:

EIA-485 communications network; Capable of baud rates between 9.6 and 115.2 kbits/s

Capable of standalone operation, but can also use BACnet MS/TP network communications

Sylk™ bus for use with Sylk-enabled sensors

Support for up to 40 controllers per BACnet MS/TP segment (under 30 is recommended)

Function block engine allows the application designer to program the controller to perform a wide variety of HVAC applications

Built-in zone control functions include a remote wall module interface and a scheduler

Pressure-independent or pressure-dependent single or dual-duct variable air volume (VAV) control

Easy user access to airflow sensor inputs

All wiring connections are made to removable terminal blocks to simplify controller installation and replacement

Both controller housing and actuator are UL plenum ratedCertifications:

UL/cUL (E87741) Listed under UL916 (Standard for Open Energy Management Equipment) with Plenum Rating

CSA (LR95329-3) Listed

Meets FCC Part 15, Subpart B, Class B (Radiated Emissions) Requirements

Meets Canadian Standard C108.8 (Radiated Emissions)

EMC Directive: 2014/30/EU Standards Applied:- IEC 61000-4-8:2009- IEC 61000-4-11:2004 - EN 61000-6-1: 2007; EN 61000-6-3:2007/A1:2011; EN 61000-6-3:2007/A1:2011/AC: 2012- EN 60730-2-9: 2010, EN 60730-2-14: 1997 + EN60730-2-14/A1: 2001- In conjunction with EN 60730-2-9:2010 and in conjunction with EN 60730-2-14:1997 and amendments: EN 60730-1: 2000 + A1: 2004 + A16: 2007 + A2: 2008 - Annex H.26

RoHS Directive: 2011/65/EU Standards Applied:- EN 50581: 2012

BTL B-ASC (BACnet Testing Laboratories, BACnet Application Specific Controller)

Honeywell PVB0000AS-ILC/U — Spyder® BACnet® programmable VAV controllers are MS/TP network devices designed to control HVAC equipment. Each controller is programmable and configurable using the Niagara Framework® software. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell

Ordering codes

Part numbers on this product pagePVB0000AS-ILC/U, PVB0000AS/U, PVB4022AS-ILC/U, PVB4022AS/U, PVB4024NS-ILC/U, PVB4024NS/U, PVB6436AS-ILC/U, PVB6436AS/U, PVB6438NS-ILC/U, PVB6438NS/U

PVB0000AS-ILC/U: frequently asked questions

Can I still buy the PVB0000AS-ILC/U now that it is discontinued?

Yes. Honeywell has discontinued the PVB0000AS-ILC/U, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can PVB0000AS-ILC/U be shipped?

PVB0000AS-ILC/U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up PVB0000AS-ILC/U in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for PVB0000AS-ILC/U and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PVB0000AS-ILC/U, subject to availability and destination.
