Honeywell PIT00B.63

INSERTIC TOUCH

MPN
PIT00B.63
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell PIT00B.63?

The "Insertic Touch" built-in readers are suitable for installation in standard flush-mounted switch boxes. Their flat design means they protrude only 21 mm from the wall. Combined with the elegant glass design, the reader blends harmoniously into both industrial and residential environments.The reader is designed as a MIFARE reader by default, but can be switched to LEGIC technology via the ACS PRO controller or IQ-DeviceInstaller. Bluetooth technology can be enabled via the controller, allowing the reader to be used for mobile credentials.The reader's three LEDs (green, yellow, red) are controlled by the control panel during normal operation. Depending on the intrusion or access control panel used, the function is fixed or can be defined via programming.The bright illuminated symbols and an integrated buzzer provide clear feedback during operation. With the optional matching mounting frame, the reader can be individually mounted even without a flush-mounted box.

Features & Benefits:

Bluetooth® SIG certificate

Fits any flush-mounted or hollow-wall device box according to DIN with a device screw spacing of 60 mm

Suitable for indoor and outdoor use

Tamper detection

RFID, Bluetooth®, and Secure Element in one reader

Supports Mobile Access via LEGIC Neon Files

Connection type: screw terminal

Signaling elements

3 LEDs/ RGB Multi-color

Backlighted capacitive touch front

1 speaker for acoustic signalling

Dimensions (H x W x D): 101 x 88 x 35 mm

Interface: RS485 module bus

Firmware upgrade via module bus

Multi-ISO platform for cards and keyfobs

LEGIC prime/advant

MIFARE DESFire EV1 / EV2 / EV3

MIFARE Classic

ISO14443 A+B

ISO15693

Platforms for mobile credentials

Bluetooth Low Energy

NFC

Honeywell PIT00B.63 — The Insertic readers complement the portfolio of readers that support the native RS-485 Modulbus of the ACS PRO and MB controllers via door modules. The readers are Multi-ISO, supporting LEGIC and MIFARE card technology – and are Bluetooth ready. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive

Ordering codes

Part numbers on this product pagePIT00B.63, PIT12B.63

PIT00B.63: frequently asked questions

When can PIT00B.63 be shipped?

PIT00B.63 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up PIT00B.63 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for PIT00B.63 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PIT00B.63, subject to availability and destination.

More Honeywell parts

Honeywell PIP-042 – ASD BATT PK SCORPION
Honeywell
PIP-042

ASD BATT PK SCORPION

Honeywell PIP-043 – Battery Charger Kit
Honeywell
PIP-043

Battery Charger Kit

Honeywell PIP-044 – ASD Eng. Port
Honeywell
PIP-044

ASD Eng. Port

Honeywell PIR1-SBP – Synthetic Motion Sensor
Honeywell
PIR1-SBP

Synthetic Motion Sensor

Honeywell PITZ00B.63 – INSERTIC TOUCH ZARGE
Honeywell
PITZ00B.63

INSERTIC TOUCH ZARGE

Honeywell PK-CD – PS-TOOLS Remote Utility Software
Honeywell
PK-CD

PS-TOOLS Remote Utility Software

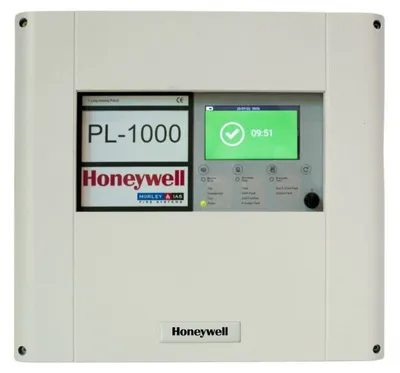

Honeywell PL-1000 – Morley-IAS Plus
