Honeywell – P180-100 VFF Series Immersion Temperature Sensor
Discontinued by Honeywell — we can still source the original P180-100 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Honeywell Building Sensors & Detectors |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the P180-100 now that it is discontinued?
Yes. Honeywell has discontinued the P180-100, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can P180-100 be shipped?
P180-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up P180-100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for P180-100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for P180-100, subject to availability and destination.
The VFF Series Immersion temperature sensors are used in heating, cooling or domestic hot water applications, where rapid response is required. The terminals of temperature sensor are not polarized; thus, even if the wires are connected in reverse, no malfunction will occur. The VFF Immersion Temperature Sensor is provided with IP 65 Protection class and cable of 2.5 m.
Features & Benefits:
Fast response time
Operating range of -20...+140 C (with NTC10k: -20… +110 C)
Easy installation
Adjustable well length
Stainless steel body material
Certifications:
EN0B-0721GE51 R0717D
Honeywell P180-100 — The VFF Series Immersion Temperature Sensors are used in heating, cooling or domestic hot water applications, where fast response temperature measurement required. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued by Honeywell |
| Brand line | Honeywell |
Others
| Minimum Operating Ambient Temperature | -20 |
| Maximum Operating Ambient Temperature | 140 |
| Cable Length | 2.5, 2.5 metre |
| Brand | Honeywell |
| Number of Wiring Terminals | 2 |
| Mounting Type | In Pipe inch |
Ordering codes
| Part numbers on this product page | P180-100, VFF00-220P65, VFF00-300P65, VFF00-75P65, VFF01-220P65, VFF01-300P65, VFF01-75P65, VFF10-220P65, VFF10-300P65, VFF10-75P65, VFF20-220P65, VFF20-300P65, VFF20-75P65 |
More Honeywell parts
Available on requestP095MPM Series P095-MP monitor override pilotAvailable on requestP100-100 P Pt 100 temperature sensors in stainless steelAvailable on requestP222 Watchdog III Signal Processor USE S256BE

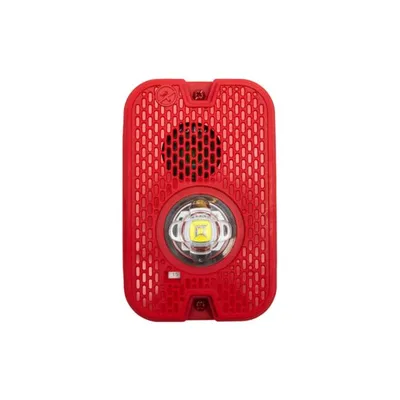

Available on requestP2GRKLED L-Series with LED Outdoor Compact Wall Horn Strobes

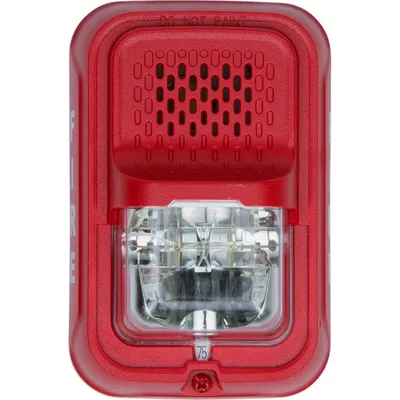

Available on requestP2GRL L-Series 2-Wire Compact Wall Horn Strobe
