Honeywell N-MPS-2C
N-MPS Conventional series
- MPN
- N-MPS-2C
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

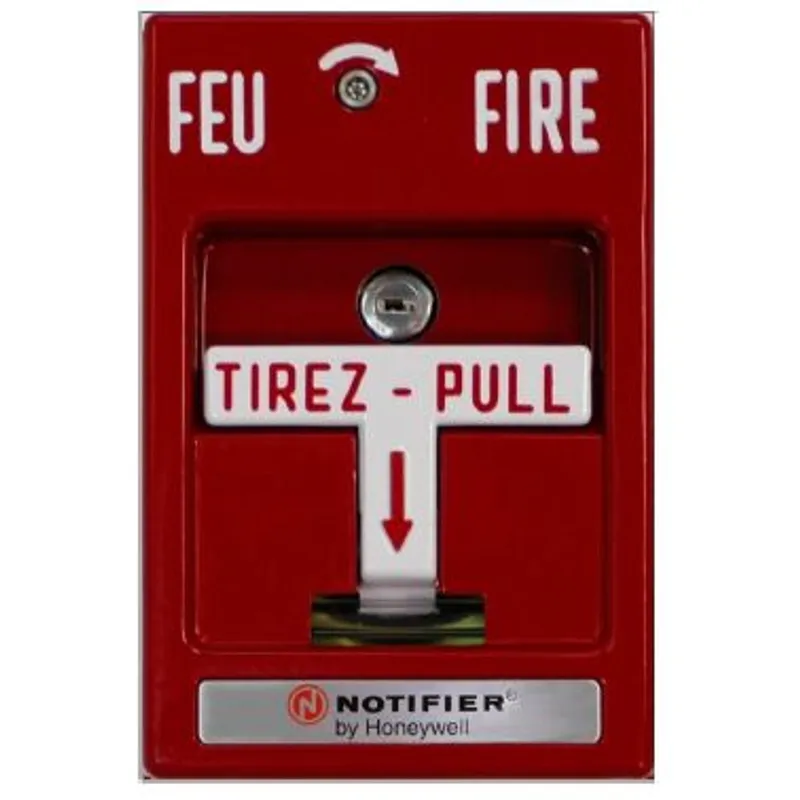

What is the Honeywell N-MPS-2C?
The NOTIFIER MPS Conventional Series manual stations provide reporting for the NFS-320C, NFS2-640, and NFS2-3030 fire alarm control panels. These high quality, die cast metal manual stations include screw terminal connections, and integrated break-glass rod. The alarm contact for the manual station is rated for 1A, 24VDC. The contacts are gold plated to avoid the risk of corrosion. The MPS Series manual stations are available as single or two-stage for conventional systems. Models N-MPS-SC/SCC are single-stage manual stations. Models N-MPS-2C/2CC (two-stage models) are similar to the N-MPS-SC (single-stage models) except they contain an additional 2nd Stage normally open key-switch. A 2nd stage key is supplied with each unit to activate the 2nd Stage keyswitch. All models are available with screw terminal connectors and a hex key for reset. Two-stage models also include a key-switch and 2 keys. All conventional models mount on a single gang box or on a single gang box with a plaster ring. For surface mounting, use NOTIFIER surface back-box MPS-BB with all conventional manual stations.
Features & Benefits:
Constructed of high quality die-cast metal
Highly visible red enamel finish
English and French lettering
Single action pull lever design
Optional dual action lever kit
Integrated break-glass
Hex key resettable
Screw terminal connectors
Optional ancillary contact for local mag-lock release
Single-stage and two-stage models
Key-switch activation for second stage
Surface or semi-flush mounting
All conventional models mount on a standard single-gang electrical box or a surface metal back-box
Certifications:
ULC listed: S7568
Honeywell N-MPS-2C — The NOTIFIER MPS Conventional Series manual pull stations provide reporting for the NFS-320C, NFS2-640, and NFS2-3030 fire alarm control panels. Available as single or two-stage. English/French lettering. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
Ordering codes
| Part numbers on this product page | N-MPS-2C, N-MPS-2CC, N-MPS-SC, N-MPS-SCB, N-MPS-SCCF |
No matching specifications
N-MPS-2C: frequently asked questions
When can N-MPS-2C be shipped?
N-MPS-2C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up N-MPS-2C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for N-MPS-2C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for N-MPS-2C, subject to availability and destination.
