Honeywell – MPA2DPXPSUBD MaxPro Access Kits with BlueDiamond Readers and Cards

The MAXPRO Access MPA2 and MPA4 kits, integrated with BlueDiamond multi-technology readers and cards, provide a modern, secure, and cost-effective access control solution for organizations of all sizes. Designed for flexibility, these kits enable users to manage their systems remotely from any location using an Ethernet or Internet connection—eliminating the need for dedicated PCs or additional software investments.The MPA controller combines robust door security and employee access management with powerful remote administration capabilities and built-in compliance reporting. Its intuitive browser-based interface simplifies setup and training, allowing authorized users to securely access and manage the system from anywhere. Additionally, the solution supports management through embedded browser access, MAXPRO® Cloud, or WIN-PAK® integration, ensuring seamless alignment with existing IT environments while minimizing operational costs.Installation is streamlined with user-friendly push-in connectors and an RJ45 “Click ‘n Done” approach, reducing deployment time and complexity. As business needs grow, the MPA system scales effortlessly to support expansion.BlueDiamond readers enhance the solution with high versatility and compatibility, supporting a wide range of smart card technologies including HID® iCLASS®, MIFARE®, and DESFire®. They enable a smooth migration from legacy, less secure card systems to modern, open standards while preparing organizations for the future with mobile credential readiness.Choose from 2 kits:MPA2DPXPSUBD : Includes MPA2 panel Enclosure, PSU, Battery (NA), and (2)BlueDiamond Multi-Technology Mini-Mullion Readers.MPA4DPXPSUBD : Includes MPA4 panel, Enclosure, PSU, Battery (NA), and(4) BlueDiamond Multi-Technology Mini-Mullion Readers

Features & Benefits:

Fast Deployment & Easy Operation

Intuitive user interface

Reduces installation and training time, improving overall operational efficiency.

Device Utility App with BLE setup

Enables quick and hassle-free system configuration using mobile devices.

RJ45 “Click ‘n Done” installation

Minimizes cabling effort and significantly reduces installation time and costs.

Flexible & Scalable Architecture

Multiple deployment options

Supports standalone (embedded web browser), MAXPRO Cloud, or WIN-PAK on-premise—adapting to any customer environment.

Scalable from single site to enterprise

Grows with your business, supporting everything from small installations to global deployments.

Cloud-ready panel

Built for seamless integration into modern cloud-based multi-site systems.

Network cascade capability

Simplifies expansion with Ethernet panel-to-panel connectivity.

Centralized Multi-Site Management

MAXPRO Cloud integration

Simplifies multi-site access control and global credential management from a single interface.

Centralized firmware updates

Ensures systems stay secure and up to date across all locations with minimal effort.

Enhanced Security & Compliance

End-to-end encryption (AES 256-bit, TLS 1.2)

Protects data with strong, industry-standard secure communication.

Card-to-Cloud security

Ensures complete system integrity across distributed installations.

OSDP Secure Channel (AES 128-bit bi-directional)

Provides secure reader communication and advanced device management.

Security certificates

Establish trusted, authenticated connections to the controller.

Advanced Reader & System Compatibility

Supports Wiegand and OSDP protocols

Enables easy migration from legacy systems to more secure, modern standards.

OSDP Reader Manager

Simplifies addressing and configuration of connected readers.

Reliability & Safety

Built-in fire input override

Ensures safe and immediate exit for occupants and first responders during emergencies.

Event notifications (fire & tamper alerts)

Provides real-time alerts to host software for improved incident response.

Power & Installation Flexibility

PoE+ or standard power supply

Offers flexible power options to suit different deployment scenarios.

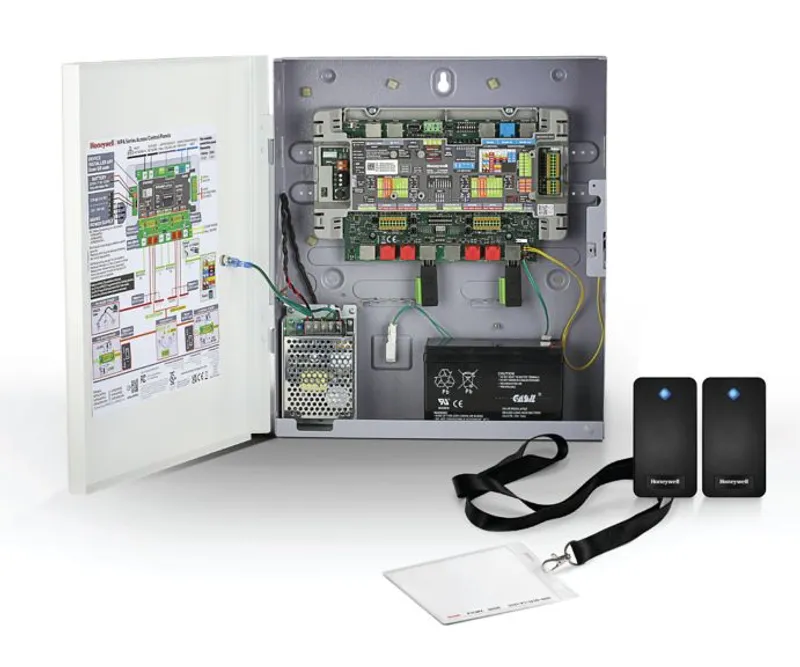

Honeywell MPA2DPXPSUBD — MAXPRO® Access MPA2 & MPA4 Kits include BlueDiamond™ multi-tech mini-mullion readers and pre-encoded cards in one box, enabling fast, easy installation with the control panel, readers, and credentials packaged together. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications
