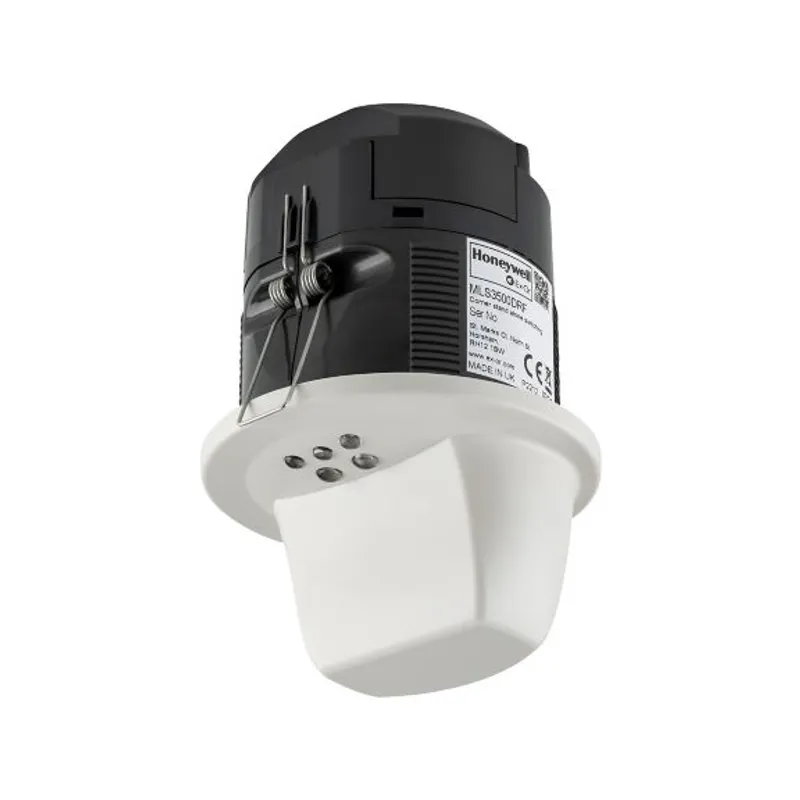

What is the Honeywell MLS3401CDRF?

Designed specifically for connection to CDW12U5, CDW12X5, CDH4U5 and CDH8U5 Lighting Control Modules (LCMs). The sensors connect to the LCM via RJ45 patch leads. Ready-made patch leads are available in lengths of 5m and 10m.

The MLS3401CDR is available in flush and surface mount versions, and offers 360-degree microwave presence detection. The MLS3500CDRF is also available in flush and surface mount versions, and offers directional microwave presence detection.

Both MLS3401CDR and MLS3500CDR contain an Infrared receiver that can be used both for local control (from a hand-held device), when in service, and for initial commissioning.

When correctly installed and connected the all variants are SELV devices.

They are not recommended for use where there are large areas of metal such as metal ceiling panels as unpredictable sensitivity may result.

They are sensitive to movement and must be installed on a rigid surface that will not itself be subject to movement.

ELECTRICAL

Power input: Powered from LCM

Power consumption : 1W

Operating voltage: 12V DC, SELV if installed

correctly.

ENVIRONMENTAL

Operating temperature: 0°C to 45°C

Storage temperature: -20° C to 80° C

Humidity: 20% to 80% non-condensing

CONFORMITY

Conformity: EMC–2014/30/EU, LVD – 2014/35/EU, RoHS–2011/65/

EU, RED2014/53EU, Human exposure standard EN 62479:2010.

SENSING

Technology

Presence detection: Microwave

Light level detection: Photocell

Max recommended mounting height:

MLS3401CDR: 3m

MLS3500CDR: 3.5m

Coverage:

MLS3401CDR: 360° Cone-shaped detection pattern, diameter (at floor level) = 2.8 x mounting height

MLS3500CDR: Adjustable up to 20m

F E AT U R E S & B E N E F I T S

360° degree and directional microwave detection variants

Surface and flush mount options.

Designed to connect to CDW12U5, CDW12X5, CDH4U5 and CDH8U5 Lighting Control Modules

SELV compliant - subject to correct installation

Configuration stored on LCM

Local control from a hand-held IR device

Honeywell Honeywell Lighting Controls MLS3401CDRF — High Detection Microwave Sensors offer high performance presence detection using Microwave technology and contain a photocell to monitor total light levels. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Brand lineHoneywell Lighting Controls

Others

BrandHoneywell Lighting Controls

Ordering codes

Part numbers on this product pageMLS3401CDRF, MLS3500CDRF
