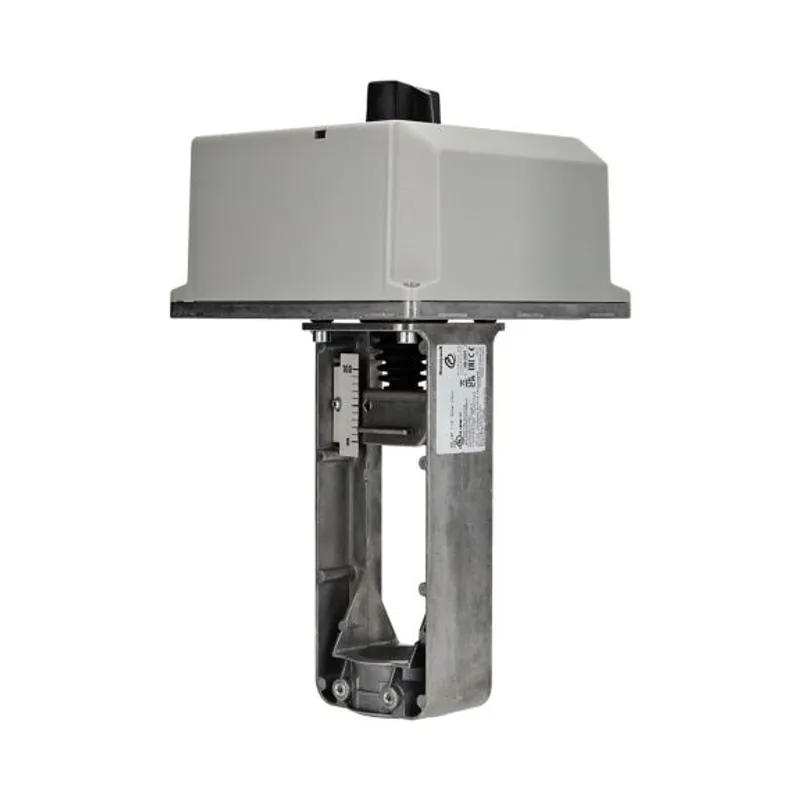

Honeywell ML7421A3004

ML7421/ML8824 Series 1800N Linear Valve Actuators

MPN
ML7421A3004
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell ML7421A3004?

ML7421 series provide 0...10Vdc or 4...20mA control of 20mm and 38mm stroke control valves. ML8824 series provide 0...10Vdc, 4...20mA, or floating 3-P control of 20mm and 38mm stroke control valves. The actuators are used with threaded valves in the V5011 and V5013 series, and flanged valves in the V5015, V5016, V5025, V5049, V5050, V5328, and V5329 series.Varieties include 24Vac/dc and 230Vac power, manual operation, and visual position indication. ML7421 stroke timing is 108s or 210s runtime (for 20mm and 38mm stroke respectively), ML8824 with 20mm stroke can be configured for 40s or 80s runtime, while the 38mm version can be confiugred for 80s and 120s runtime. Actuators are rated at 1800N linear force and IP54 protection class. Accessories are available separately, such as high temperature kits.

Honeywell ML7421A3004 — ML7421 and ML8824 series linear valve actuators are used with control valves in sizes ranging from DN15 to DN150 connection size, with 20mm and 38mm stroke. They are used in a variety of applications where control accuracy is critical. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive

Ordering codes

Part numbers on this product pageML7421A3004, ML7421B3003, ML8824A1820, ML8824A1840

ML7421A3004: frequently asked questions

When can ML7421A3004 be shipped?

ML7421A3004 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ML7421A3004 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ML7421A3004 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ML7421A3004, subject to availability and destination.
