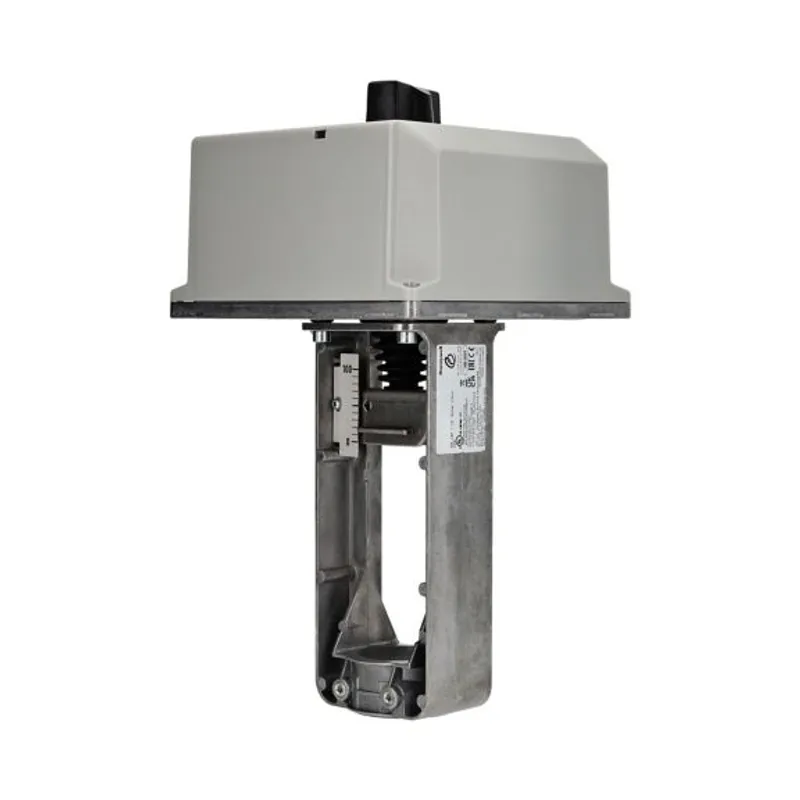

Honeywell ML6421A1017

ML6421, ML7421 405 lbf Non-Spring Return Globe Valve Actuators

MPN
ML6421A1017
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original ML6421A1017 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell ML6421A1017?

The ML6421A,B Non-Spring Return Electric Linear Valve Actuators are suitable for use with low-voltage, single-pole double-throw (spdt), Series 60 two-position and floating controllers. These actuators operate standard Honeywell valves in heating, ventilating, and air conditioning (HVAC) applications.The ML7421A,B Non-Spring Return Electric Linear Valve Actuators are modulating control actuators used with controls that provide an analog output of 0 to 10 Vdc or 2 to 10 Vdc. These actuators operate standard Honeywell valves in HVAC applications. An internal selector plug can be used to reverse the direction of action.

Features & Benefits:

Quick and easy installation, No separate linkage required

3/4 in. (20 mm) stroke on ML6421A and ML7421A, 1-1/2 in. (38 mm) stroke on ML6421B and ML7421B

Low power consumption

Selectable 0(2) to 10 Vdc or 0(4) to 20 mA, Direct/reverse acting input signal with ML7421

Position feedback with ML7421

405 lbf stem force for high close-off ratings

Force-limiting end switches

Manual operator

Synchronous motor

Maintenance free, Corrosion-resistant design

Conduit connector knockout

Certifications:

Canadian Standards Association Listed

Underwriterís Laboratories, Inc. UL94-5V Flame Retardant (file E181716)

Meets CE requirements

Honeywell ML6421A1017 — ML6421 floating control and ML7421 modulating control 405 lbf Non-Spring Return Electric Linear Valve Actuators operate standard Honeywell valves in heating, ventilating, and air conditioning (HVAC) applications. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell

Ordering codes

Part numbers on this product pageML6421A1017, ML6421B1040, ML7421A1032, ML7421B1023

ML6421A1017: frequently asked questions

Can I still buy the ML6421A1017 now that it is discontinued?

Yes. Honeywell has discontinued the ML6421A1017, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can ML6421A1017 be shipped?

ML6421A1017 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ML6421A1017 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ML6421A1017 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ML6421A1017, subject to availability and destination.
