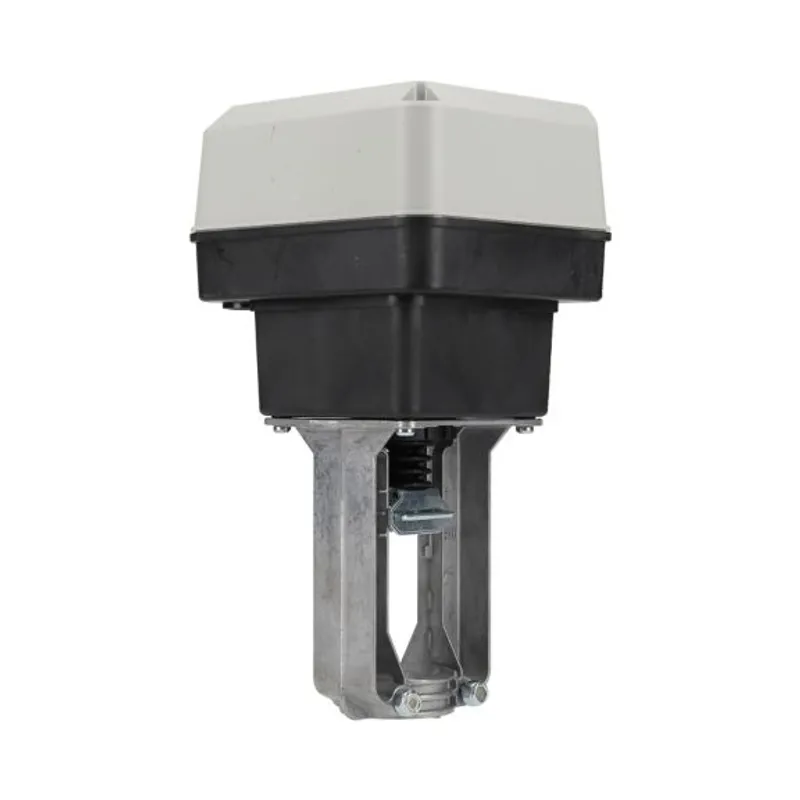

Honeywell – ML2524 ML7420/ML7425/ML8824 Series 600N Linear Valve Actuators
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Honeywell HVAC Field Devices (valves, actuators, sensors) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ML2524 be shipped?
ML2524 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ML2524 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ML2524 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ML2524, subject to availability and destination.
ML7420 and ML7425 series provide 0/2...10Vdc control of 20mm stroke control valves; ML8824 has universal control signal of 0/2...10Vdc, 4...20mA, and 3-P floating control. ML7420 and ML8824 are standard, and ML7425 offers spring return safety function. ML7425A6008 offers DIN EN 14597 district heating certification together with V5016A/V5025A/V5049/V5328 series of control valves.Varieties include 24Vac/dc , manual operation, 30s or 60s runtime (ML7420), 108s drive / 15s spring return runtime (ML7425), and ML8824 is configurable. Manual operation available on ML7420 and ML8824. Feedback available on most models.Actuators are rated at 600N linear force and IP54 protection class. High temperature kits available as accessory
Honeywell ML2524 — ML7420, ML7425, and ML8824 series linear valve actuators are used with control valves in sizes ranging from DN15 to DN80 connection size, with 20mm stroke. They are used in a variety of applications where where control accuracy is critical. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Brand line | Honeywell |
Others
| Minimum Operating Ambient Temperature | -10 °C |
| Maximum Operating Ambient Temperature | 50 °C |
| Supply Voltage Frequency | 50; 60 Hz |
| Supply Voltage | 24 VAC |
| Stroke Length | 20 mm |
| Brand | Honeywell |
| Minimum Operating Humidity | 5 % Percentage |
| Maximum Operating Humidity | 95 % Percentage |
| Feedback Included | Yes |
| Actuator Motion | Linear |
| Actuator Type | Electric |
Ordering codes
| Part numbers on this product page | ML2524, ML7420A6009, ML7420A6009T, ML7420A6017, ML7420A6017T, ML7420A6025, ML7420A6025T, ML7420A8088-E, ML7421A8035-E, ML7421B8012-E, ML7425A6008, ML7425A6008T, ML7425A6024, ML7425A6024T, ML7425A8018-E, ML7425B6007, ML7425B6007T, ML8824A0620, OUML7420A6017, ML7421A1032, ML7421B1023 |
