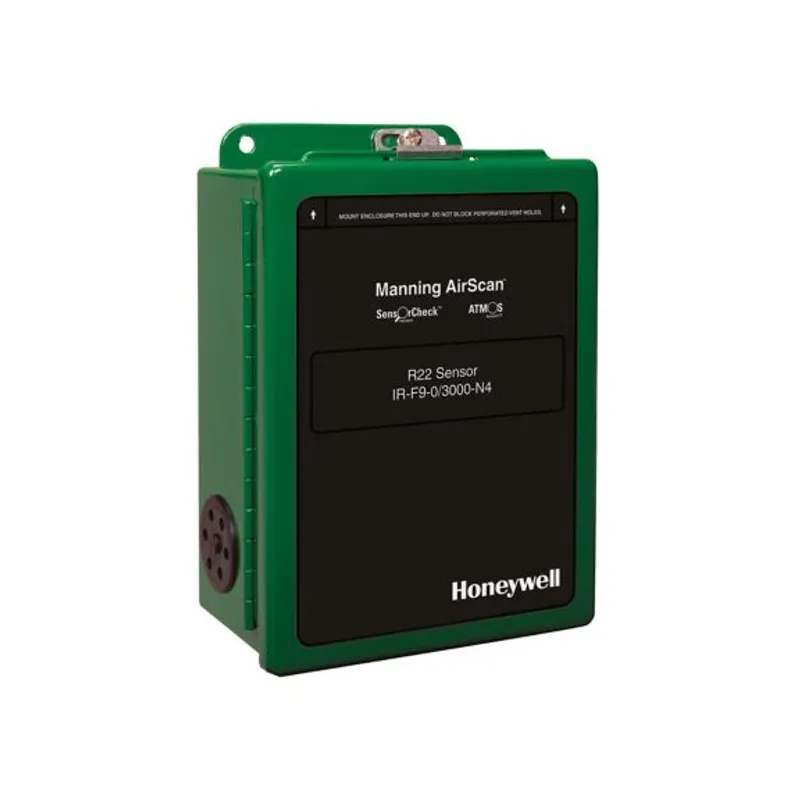

Honeywell – M-510886 Encl Suba IR-F4IR-F9 SS Encl Atmos

Part of Honeywell's Manning AirScan IR-F9 Gas Detector range. Infrared diffusion-based gas detection that enables thermal stability and freedom from vibration.

Product Overview:

The Manning AirScan™ iR sensor responds to refrigerants over the range of 0-3000 ppm and features SensorCheck™ technology that continually monitors sensor performance.The Manning AirScan™ iR infrared sensor is an affordable microprocessor-based sensor that is selective to refrigerants and, because of its stabilized design platform, will provide years of service and will maintain the highest level of accuracy and reliability. This highly versatile sensor features SensorCheck™, a unique technology that continuously monitors sensor performance that enables it to provide worry-free performance throughout the life of the sensor.

A true “diffusion” design sensor, the Manning AirScan™ iR sensor does not require either pumps or filters and allows all points of detection to be monitored perpetually, unlike sample draw systems. The versatile sensor is housed in a high mass metal bench structure that enables thermal stability and freedom from vibration.

Additional Features and Benefits:

Applications:

Banana and Produce Rooms

Beverage Plants

Chemical Plants

Confined Space Entry

Food Processing

Gas Bottling Plants

Ice Rinks

Product Coolers

Rack Houses

Refrigeration Systems

Supermarkets

Wineries

Refrigerant Specific:

Rapid response to refrigerants including R-404a, R-22, R-507 or R-134a

Internal monitoring of 4/20 mA loop circuitry continuously

Diffusion-Design Sensor:

Has no moving parts and doesn’t require pumps or filters

All points of detection can be monitored continuously at an affordable cost

Versatility:

Can be used with any Honeywell Analytics readout

Standard range of 0-3,000 ppm, can be rescaled for lower trip points

Provides a linear output of 4/20 mA as a function of refrigerant concentration

Simple, real-time calibration eliminates maintenance downtime

Automatically adapts to fluctuating temperatures

Long-Lasting Performance:

Unique internal reference channel compensates for dust particles, source degradation, humidity and temperature fluctuation, food odors, chemical cleaners, etc.

ATMOS™ Technology:

Allows for operation down to -60°F and in condensing humidity environments or during washdown

Automatically adapts to its environment and provides accurate and reliable performance under the harshest conditions

SensorCheck™ Technology:

Checks operating parameters of sensors and sends a notification output signal if an anomaly is identified

Tests the sensor every 24 hours for electrical viability

Indication can be detected by a Manning gas monitor or PLC

Housing:

High-mass metal bench provides structural and thermal stability and greater immunity to vibration

Superior EMI/RFI shielding

Features & Benefits:

Rapid response to refrigerants including R-404a, R-22, R-507 or R-134a

No moving parts and pumps/filters not required

Can be used with any Honeywell Analytics readout

Quick Specs:

Long-Lasting Performance

ATMOS™ Technology

SensorCheck™ Technology

Superior EMI/RFI shielding

Honeywell M-510886 — Encl Suba IR-F4IR-F9 SS Encl Atmos (Manning AirScan IR-F9 Gas Detector). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
