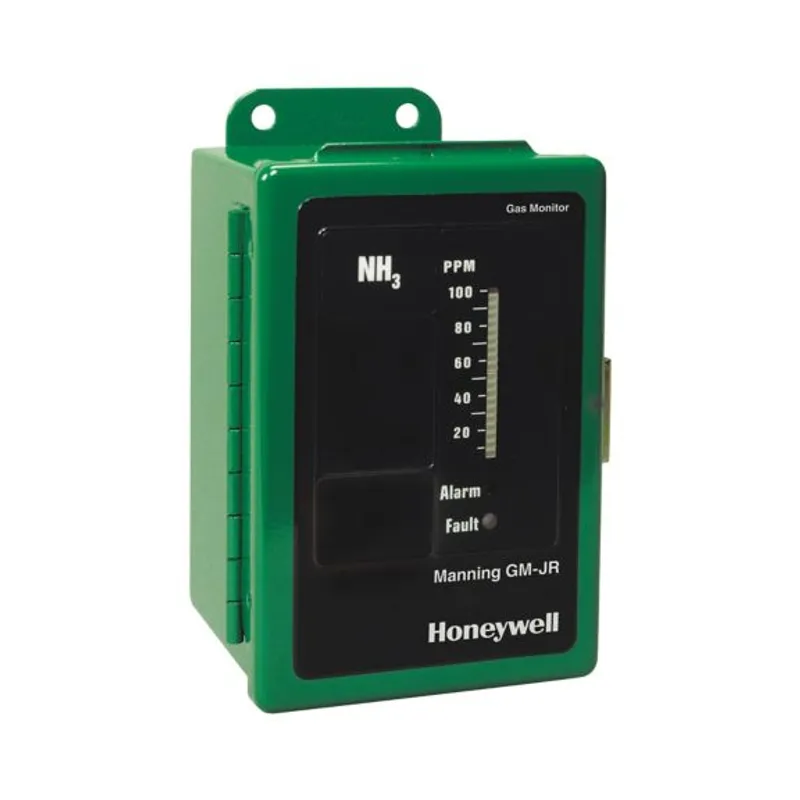

Honeywell M-510426

GM-JR, feed-through configuration, NEMA 1 enclosure

MPN
M-510426
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell M-510426?

Part of Honeywell's Manning GM-JR range. Innovative, standalone readout/alarm unit that can be configured in a variety of ways to solve many refrigeration-gas concentration and alarm needs.

Product Overview:

This unique, practical gas monitor readout/alarm device offers a variety of configuration options for industrial refrigeration customers with their own computer control system, OEMs who want to incorporate gas sensing in their design and existing Honeywell Analytics customers who want remote indication other than at their main readout. It has an easily adjusted setpoint and relay output in either configuration, plus 4/20mA output in the feed-through design. With its own plug-in power supply, the GM-JR sensor combination provides an economical answer for local concentration level information and control capability.

The GM-JR standard configuration is a single, rugged, miniaturized board mounted inside the door of the enclosure, and a separate terminal board for the sensor and/or power cable connections. The 20-segment LED bar graph has a calibrated scale that is specified when ordered. Alarm trip adjustments are made easily at 5% increments. On power up or after momentary power loss, a one-minute power-up delay period allows the sensor to stabilize.

The unit continuously monitors the incoming 4/20 mA signal from the sensor. If the signal drops below 1.4 mA, the fault LED will illuminate and the alarm relay will trip. The alarm relay is always energized in its normal state, providing additional safety.

The GM-JR can be housed in its own 4 x 6 heavy-duty steel enclosure and operate as an end of line stand-alone readout/alarm unit or feed the sensor's 4/20 mA signal directly through to a PLC. It also can be mounted in the door of any sensor enclosure to incorporate both sensor and readout in the same 4 x 6 or 6 x 8 housing. Use #18/3 shielded cable (Belden #8770 or equal) for runs up to 1500' with most sensors.

Additional Features and Benefits:

20-segment calibrated bar graph

Power-up delay

Fail-safe design

Easy trip setting

Relay output is time delayed

Downscale alarm configuration available for oxygen

Rugged NEMA 1, gasketed steel enclosure

Continuous fault monitoring

Feed-through configuration allows remote readout capability while being powered from instrument cable (no remote power supply needed)

Features & Benefits:

20-segment calibrated bar graph

Power-up delay

Fail-safe design

Also available with stainless steel enclosure

Honeywell M-510426 — GM-JR, feed-through configuration, NEMA 1 enclosure (Manning GM-JR). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
DescriptionGM-JR, feed-through configuration, NEMA 1 enclosure
Product seriesManning GM-JR

M-510426: frequently asked questions

When can M-510426 be shipped?

M-510426 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up M-510426 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for M-510426 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for M-510426, subject to availability and destination.
