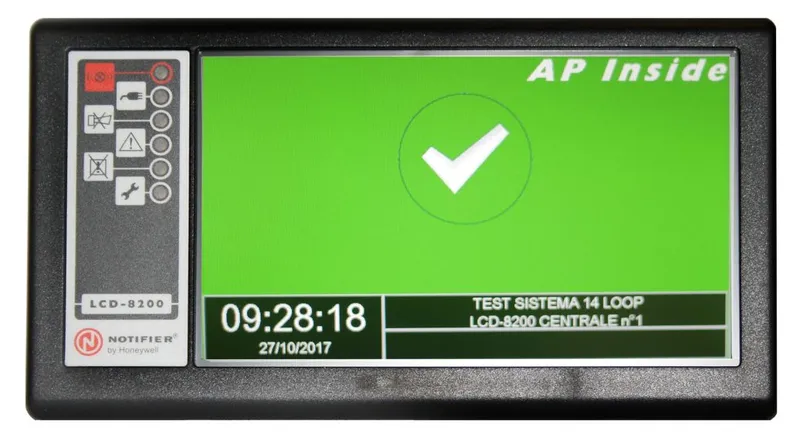

Honeywell LCD-8200

Repeater terminal for AM-8200 with 7" Touch LCD colour display.

MPN
LCD-8200
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original LCD-8200 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell LCD-8200?

LCD-8200 is a remote repeat panel for the AM-8200, with a 7in color touch screen. It connects to the single AM-8200 Panel via an RS.485 serial line. Along the above serial line can be connected up to 32 LCD-8200. The panel must be configured locally as "GENERAL RECEIVER" or as "Partial". If configured as "Partial", you must program through the PK-8200 the pairs to the Zones or Devices you want to display. On the LCD-8200 panel, locate the device address locally. The programmable addresses range from 1 to 16 for both categories (GLOBAL or PARZIAL), for a total of up to 32 repeaters. If programmed as "GLOBAL", the LCD-8200 repeats all the messages on the control panel and if the control panel is in a CanBus network, repeats all network events. If programmed as "PARTIAL", the LCD-8200 allows the display of active events in the sensor / modules module or selected zones. You can select up to 64 types of events, referring to the following states in the control panel, or zones or individual devices

Features & Benefits:

72 MHz microprocessor system, 1Gbit Nand Flash, 256Mbit DDR, 16Mbit Flash SPI

Display 7in wide TFT RGB 800x480-with resistive Touch Pad with LED backlight

Active area 152.5 mm x 91.44mm anti-glare treatment

2 power supply leads

2/3 conductors for serial line connection (2 with common power supplies, 3 with independent power supplies)

Honeywell LCD-8200 — LCD-8200 is a remote repeat panel for the AM-8200, with a 7in color touch screen. It connects to the single AM-8200 Panel via an RS.485 serial line. Along the above serial line can be connected up to 32 LCD-8200. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell

LCD-8200: frequently asked questions

Can I still buy the LCD-8200 now that it is discontinued?

Yes. Honeywell has discontinued the LCD-8200, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can LCD-8200 be shipped?

LCD-8200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LCD-8200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LCD-8200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LCD-8200, subject to availability and destination.
